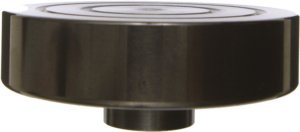

Flat saddles TPL – 500 bar
Protect piston rod end
| Cylinder category
Tons |
Reference | Dimensions (mm) | Weight
Kg |
For cylinders | ||||
| a | b | c | SLS | SLE | SLT | |||
| 6 | TPL 6 | 60 | 17 | 16 | 0,4 | 6 – 10 T * | 10 T | 10/330 |
| 10 | ||||||||
| 20 | TPL 20 | 80 | 20 | 25 | 0,9 | 20 – 45 T * | 20 – 45 T | 20 T |
| 45 | ||||||||
| 75 | TPL 75 | 120 | 22 | 35 | 2,1 | 75 – 110 T * | 75 – 110 T | 60 T |
| 110 | ||||||||
* Except for 30 mm stroke cylinders
