Telescopic cylinders – 500 bar – SLT

Light alloy

Features
Options

Features

• Single acting, load return
• Spring return for piston N°2 (SLT 20/400)
• Corrosion resistant light alloy body
• Chrome plated or corrosion resistant light alloy piston rod
• Wiper seals
• Delivered in standard without coupler

Options

F : 4 base threaded mounting holes

Print this sheet

Telescopic cylinders – 500 bar – SLT : Lifting light alloy cylinders 500 bar - Quiri - 2

Cylinder category Tonnes	Working force 500 bar kN	Stroke total mm	b mm	d mm	Reference	Piston n°1			Piston n°2			Piston n°3			Oil volume cm3	Weight kg
Cylinder category Tonnes	Working force 500 bar kN	Stroke total mm	b mm	d mm	Reference	Eff. area cm2	Force kN	Stroke mm	Eff. area cm2	Force kN	Stroke mm	Eff. area cm2	Force kN	Stroke mm	Oil volume cm3	Weight kg
5	47,2	330	237	100,5	SLT 5/330	38,48	192,4	115	19,63	98,2	230	9,62	48,1	330	720	7,5
10	98,2	330	300	100,5	SLT 10/330	38,48	192,4	160	19,63	98,2	330				1000	10
		350	260	145,5	SLT 10/350	95,03	475	105	38,48	192,4	215	19,63	98,2	350	1700	15,5
		630	387	145,5	SLT 10/630	95,03	475	200	38,48	192,4	400	19,63	98,2	630	3120	22
20	192,4	190	193	190,5	SLT 20/190	153,93	769,3	55	95,03	475	120	38,48	192.4	190	1730	19
		400	365	145,5	SLT 20/400	95,03	475	200	38,48	192,4	400				2670	20
		680	415	190,5	SLT 20/680	153,93	769,3	210	95,03	475	440	38,48	192,4	680	6300	42
60	623,2	220	290	230,5	SLT 60/220	227	1134,4	110	124,69	623,2	220				3870	34
60	623,2	450	415	230,5	SLT 60/450	227	1134,4	225	124,69	623,2	450				7920	46

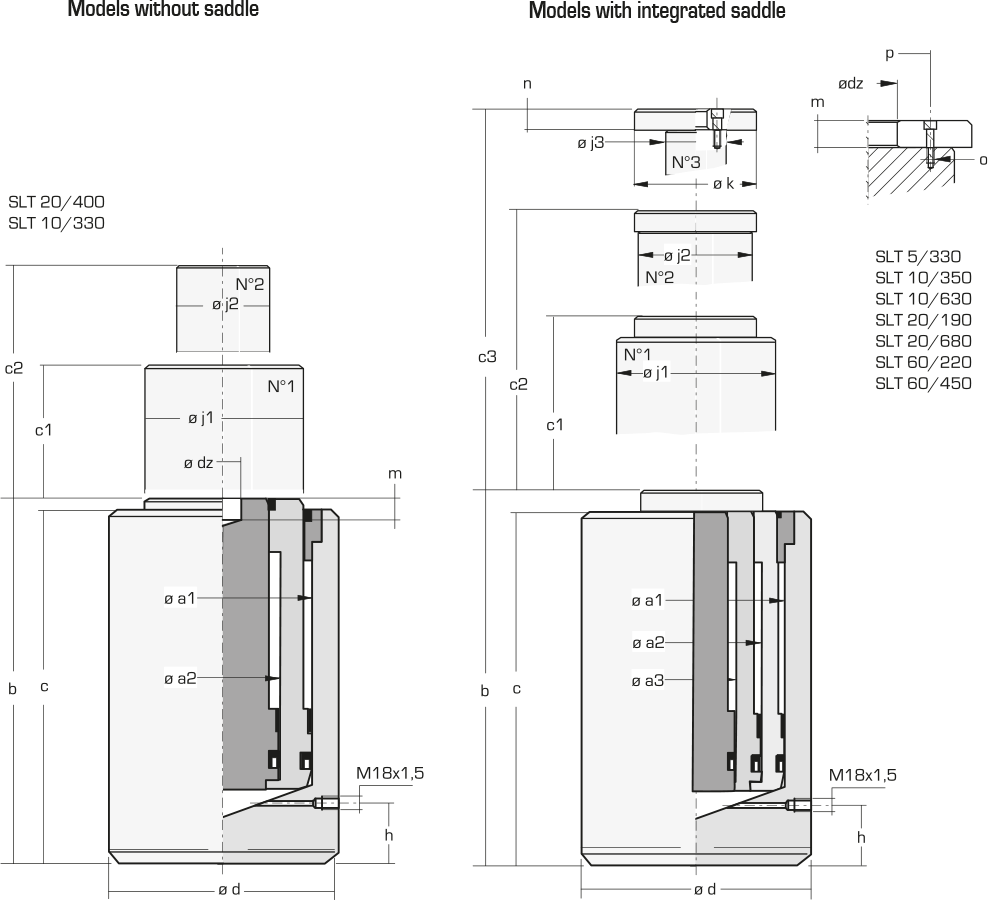

Other dimensions

Telescopic cylinders – 500 bar – SLT : Lifting light alloy cylinders 500 bar - Quiri - 3

Cylinder category	Reference	Dimensions (mm)																			Option F
Cylinder category	Reference	a1	a2	a3	c1	c2	c3	b	c	d	h	j1	j2	j3	k	dz	m	n	p	o	M x pon Ø g
Tons		a1	a2	a3	c1	c2	c3	b	c	d	h	j1	j2	j3	k	dz	m	n	p	o	M x pon Ø g
5	SLT 5/330	70	50	35	115	230	330	237	221	100,5	25	63	45	25	58			12		1 x M6	M8 x 20 on Ø 65
10	SLT 10/330	70	50		160	330		300	297	100,5	25	63	40			16	16				M8 x 20 on Ø 65
	SLT 10/350	110	70	50	105	215	350	260	235	145,5	28	100	63	40	95	16	7,5	22		1 x M8	M10 x 20 on Ø90
	SLT 10/630	110	70	50	200	400	630	387	361	145,5	40	100	63	40	95	16	7,5	22		1 x M8	M10 x 20 on Ø90
20	SLT 20/190	140	110	70	55	120	190	193	168	190,5	25	130	100	63	128	25	23	23	45	2 x M8	M10 x 20 on Ø120
	SLT 20/400	110	70		200	400		365	361	145,5	40	100	63			25	20				M10 x 22 on Ø90
	SLT 20/680	140	110	70	210	440	680	415	390	190,5	35	130	100	63	128	25	23	23	45	2 x M8	M10 x 22 on Ø120
60	SLT 60/220	170	126		110	220		290	285	230,5	42	160	110		130	35	23	23	80	4 x M12	M12 x 25 on Ø150
60	SLT 60/450	170	126		225	450		415	410	230,5	42	160	110		130	35	23	23	80	4 x M12	M12 x 25 on Ø150
