Rerailing set QR12
For tramway
The QR12 set is dedicated to the tramways rerailing exercises. Especially designed to be light, easily movable, it allows quick and secured operations.
A 3 people team is recommended to carry out a totally safe rerailing exercise. The equipment has been thought so that all the lifting and sliding operations can be made at distance.
Advantages:
– ultra flat lifting cylinders
– reduced height rerailing bridges
– dedicated double acting sliding system
– easy to use
• Maximum load per axle: 12 t
• Cylinders closed height:
– pre-lifting: 112 mm
– lifting: 127 mm
• Cylinders stroke:
– pre-lifting: 115 mm
– lifting: 160 mm
• Cylinders lifting capacity (per stage): 7,8 t / 19 t / 31 t
• Hydraulic power unit with petrol engine or hand pump
• Pneumatic lifting bag
• Rerailing bridge’s height: 25 mm
• Colour code on all the material to facilitate the connections
• 1 hydraulic petrol engine power unit with integrated control desk
and/or
• 2 hand pumps (1x for lifting operation + 1x for sliding operation)
• 1 set of connection hoses
• 2 light alloy rerailing bridges + stop blocks
• 4 synthetic plates for lawn
2000 x 500 x th. 15 mm
• 4 synthetic plates for ballast
700 x 300 x th. 40 mm
• 2 steel sliding plates with synthetic feet
• 2 lifting telescopic cylinders
• 2 double acting sliding cylinders
• 2 pre-lifting telescopic cylinders
• 1 lifting bag with pneumatic control
• 1 wedging set, wood and synthetic
• 1 storage box
• 1 link blocking bar
QR12 components references:
| Reference | Picture | Quantity | Description | Weight
kg |
| GTM 13113 |  |
1 | Hydraulic power unit with petrol engine fitted with:
– petrol engine 2,8 cv at 2500 tr/min – pump 1,5 l/min – 25 l tank with carrying handles – manual operated valves 2 x single acting + 1 x double acting with centre spring return to feed lifting and sliding cylinders – quick couplers |
60 |
| P12S
(Option) |
 |
1 | Hand pump for single acting lifting cylinders
– oil flow 8 cm3 per pump stroke – maximum handle effort 30 kg at 200 bar – 6 l usable tank – stabilization metal sheet under the tank – flow block with anti-transfer valves – quick couplers |
26 |
| P16D
(Option) |
 |
1 | Hand pump for double acting sliding cylinders
– oil flow 15 cm3 per pump stroke – maximum handle effort 30 kg at 120 bar – 6 l usable tank – stabilization metal sheet under the tank – flow block – quick couplers |
26 |
| SLT 7,5/115
(Option) |
 |
2 | Pre-lifting telescopic cylinder with 3 expandings
Light alloy, single acting, load return Force: 7,8 t at 200 bar Stroke: 115 mm Retracted height: 112 mm |
15,5 |
| SLT 7,5/160 |  |
2 | Lifting telescopic cylinder with 3 expandings
Light alloy, single acting, load return Force: 7,8 t at 200 bar Stroke: 160 mm Retracted height: 127 mm |
18 |
| SLCD 5/160 |  |
2 | Hollow sliding cylinder
Light alloy, double acting – maximum force (push) : 5,3 t at 200 bar – force (pull) : 3 t at 120 bar – stroke : 160 mm Fitted with: – 1 stud support – 1 pulling rod with accessories – quick couplers |
16 |
| PGA |  |
2 | Steel sliding plate with synthetic feet
279 mm x 290 mm x th. 10 mm With guiding and hanging system and for sliding cylinder |
10 |
| PDR25 |  |
2 | Light alloy rerailing bridge 1500 mm x 260 mm x th. 25 mmWith 10 notches distributed every 140 mm NOTE : also exists in thickness 60 mm – weight 55 kg |
25 |
| BPDR |  |
2 | Stop block for PDR rerailing bridge with accessories | |
| ECL
(Option) |
 |
1 | Lifting bag + pneumatic control and containing:
– 1 x 30 t lifting bag – 1 control box – 1 pressure regulator – 1 air flexible hose lg 10 m + couplers Delivered without nitrogen bottle |
10 |
| Hoses |  |

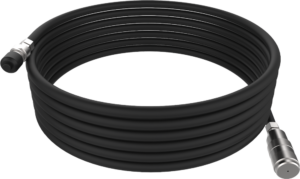

2 | 10 m thermo-plastic hose, nominal Ø6 mm, with male and female quick couplers | 12 |
| Double hoses | |
2 | 10 m double thermo-plastic hose, nominal Ø6 mm, with male and female quick couplers | 24 |
| «Rail-road» hose
(Option) |
|
1 | 10 m double thermo-plastic hose «Rail-road», nominal Ø6 mm, with male and female quick couplers | 24 |
