Rerailing set QR90

For heavy equipment

Description

The QR90 set is able to rerail or to place outside the way every vehicle that moves on railway (trains, locomotives, wagons…).
Especially designed to be light, easily movable, it allows quick and secured operations.

A 3 people team is recommended to carry out a totally safe rerailing exercise. The equipment has been thought so that all the lifting and sliding operations can be made at distance.

Advantages:
– telescopic light alloy lifting cylinders
– light alloy rerailing bridges, low height
– power unit with separated control desk
– easy to use

Characteristics

• Cylinders closed height:

– pre-lifting: 308 mm

– lifting: 415 mm

• Cylinders stroke:

– pre-lifting: 220 mm

– lifting: 420 mm

• Cylinders lifting capacity (per stage): 56 t / 103 t

• Hydraulic power unit with petrol engine (electrical, diesel or pneumatic engine on request)

• Rerailing bridge height: 140 mm

• Colour code on all the material to facilitate the connections

Composition

• 1 hydraulic petrol engine power unit

• 1 control desk 4 ways

• 1 set of connection hoses

• 2 light alloy rerailing bridges, length 2,2 m

• 2 roller carriages with integrated translation cylinder

• 2 pre-lifting telescopic cylinders

• 2 lifting telescopic cylinders

• 2 hydraulic oil cans

Options

• 4 rescue hand pumps (2 x for lifting operation + 2 x for sliding operation)

• 1 junction element to assemble the 2 rerailing bridges

• 2 adjustment devices for roller carriage

• 2 single acting cylinders SER1615 for roller carriage

• Rerailing bridges available in length 1,1 m, 3,3 m and 4,4 m

• Uprighting system overturned rail vehicles

• Axle pusher

Print this sheet

Rerailing set QR90 : Rerailing set - Quiri - 2

Références des composants de l’ensemble QR90 :

Reference	Picture	Quantity	Description	Weight kg

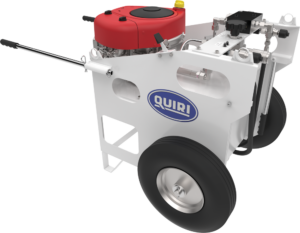

GTM 14104		1	Hydraulic power unit with petrol engine made of: – petrol engine 8 cv at 2500 tr/min – pump 2 oil flow: * LP: 9 l/min at 50 bar * HP: 2,5 l/min at 445 bar – 37 l tank – quick couplers – protection frame with 2 wheels	134

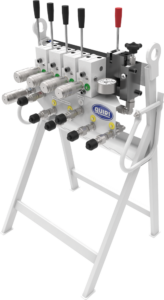

TDC		1	Control desk 4 ways for single and double acting cylinders feeding, fitted with: – 4 manual operated valves with closed center spring return – 1 breaking valve for cylinders going down under load – 1 modulation valve with oil jet to facilitate the cylinders going down without load – 1 pressure gauge 0-600 bar – 1 block for cylinders hydraulic return	55

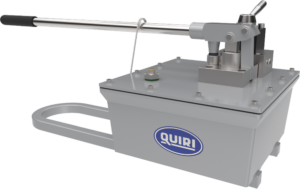

PMD 7312 (Option)		2	Hand pump for double acting lifting cylinders – oil flow: LP 10 cm3 per stroke / HP 2,5 cm3 per stroke – maximum handle effort 32 kg at 445 bar – 12 l usable tank – 2 flexible hoses length 2 m with quick couplers	31

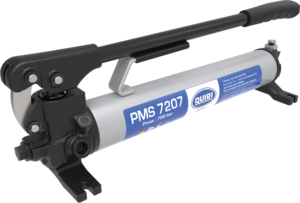

PMS 710 (Option)		2	Hand pump for double acting sliding cylinders – oil flow 2,5 cm3 per stroke – maximum handle effort 32 kg at 445 bar – 1,25 l usable tank – quick coupler	7

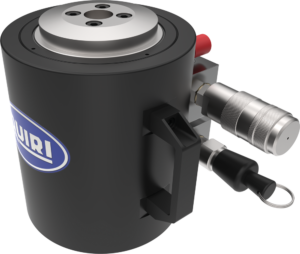

SLTD 60/220		2	Lifting telescopic cylinder with 2 expandings Light alloy, double acting, spring and hydraulic return Force: 56 t at 445 bar Stroke: 220 mm Retracted height: 308 mm Fitted with: – quick couplers + safety valve on return side – 1 folding carrying handle	40

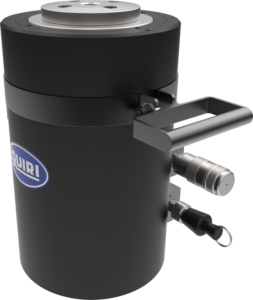

SLTD 60/420		2	Lifting telescopic cylinder with 2 expandings Light alloy, double acting, spring and hydraulic return Force: 56 t at 445 bar Stroke: 420 mm Retracted height: 415 mm Fitted with: – quick couplers + safety valve on return side – 1 folding carrying handle	52

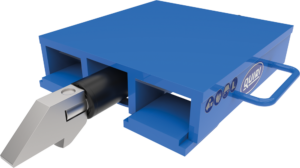

CDR		2	Roller carriage with integrated single acting cylinder Capacity 81 t (800 kN) Tray dimensions: 360 mm x 350 mm x th. 95 mm With 8 t translation cylinder – stroke 307 mm	53

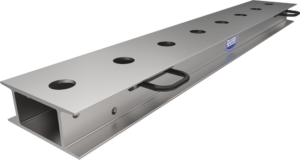

PDR140/2,2		2	Light alloy rerailing bridge Load 102 t (ground support) Load 41 t (1,43 m max. scope) 2200 mm x 350 mm x th. 140 mm (without handles) With 8 notches	80
PDR140/… (Option)		2	Rerailing bridges idem above except – length 1100 mm – length 3300 mm – length 4400 mm	40 120 163

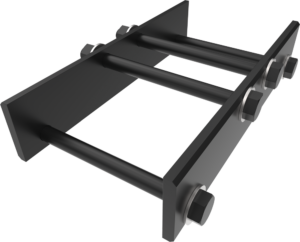

EDJ (Option)		1	Junction element to assemble 2 rerailing bridges	18
Hoses		4	Connecting hose table-cylinders (push side) 10 m rubber hose, nominal Ø10 mm With male quick coupler and female quick coupler with safety	12
Hoses		2+2	Connecting hose control desk-cylinders (return side) + control desk-power unit 10 m rubber hose, nominal Ø10 mm With male and female quick couplers	12
LP Hose		1	Connecting hose table-power unit 10 m rubber hose, nominal Ø16 mm With female quick couplers	10

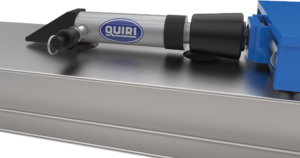

DDR (Option)		2	Set fitted with a pushing sheath and a counter support, to be combined to SER1615 To be used to reverse the CDR roller carriage if necessary	6

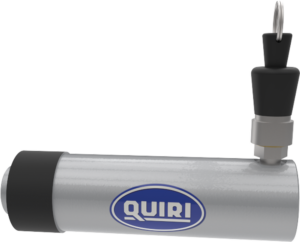

SER1615 (Option)		2	SER1615 cylinder Single acting, spring return Force: 10,5 t at 445 bar Stroke: 150 mm Fitted with quick coupler	7,5
