MRG

Diameter : 25

Features

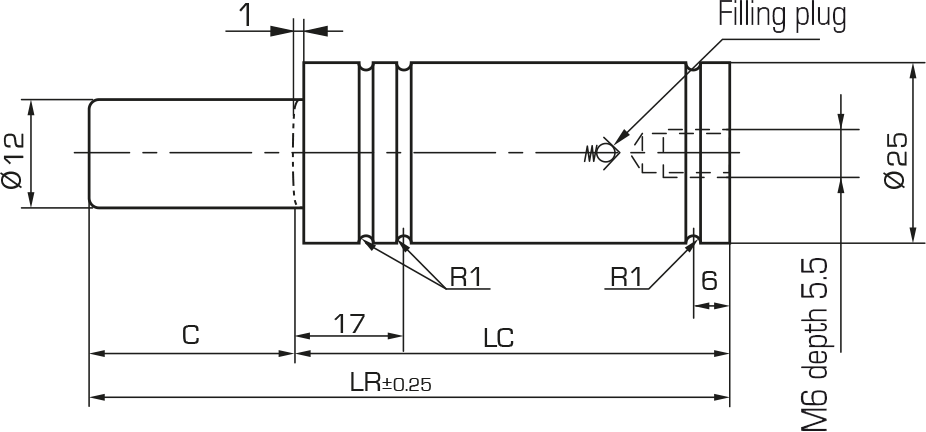

• Body diameter: 25 mm
• Inflating valve on the bottom
• Cannot be used in piping system
• Force can be changed by changing the pressure

Print this sheet
MRG : Micro gas springs - Quiri - 2
MRG : Micro gas springs - Quiri - 3
MRG : Micro gas springs - Quiri - 4
Type Force

daN

 Stroke C

mm

 Order code ISO Pressure

MPa (bar)

 Force F1

N*

 Force F2

N*

 LR

mm

 LC

mm

 Colour
MRG 50 7 442060/600 4.5

(45)

 510 640 56 49
10 442061/600 660 62 52
12.7 442069/600 720 67.4 54.7
15 442068/600 X 720 72 57
16 442062/600 690 74 58
25 442063/600 X 750 92 67
38 442066/600 X 770 118 80 Green
50 442064/600 X 770 142 92
63.5 442067/600 760 172 108.5
77 442065/620 770 202 122
80 442065/600 X 770 205 125
100 442107/600 X 780 245 145
125 442117/600 X 780 295 170
100 7 442070/600 9

(90)

 1 020 1 280 56 49
10 442071/600 1 320 62 52
12.7 442079/600 1 440 67.4 54.7
15 442078/600 X 1 430 72 57
16 442072/600 1 380 74 58
25 442073/600 X 1 490 92 67
38 442076/600 X 1 530 118 80 Blue
50 442074/600 X 1 530 142 92
63.5 442077/600 1 520 172 108.5
77 442075/620 1 540 202 122
80 442075/600 X 1 540 205 125
100 442108/600 X 1 560 245 145
125 442118/600 X 1 560 295 170
150 7 442080/600 13.5

(135)

 1 530 1 910 56 49
10 442081/600 1 980 62 52
12.7 442089/600 2 150 67.4 54.7
15 442088/600 X 2 140 72 57
16 442082/600 2 070 74 58
25 442083/600 X 2 240 92 67
38 442086/600 X 2 290 118 80 Red
50 442084/600 X 2 300 142 92
63.5 442087/600 2 280 172 108.5
77 442085/620 2 310 202 122
80 442085/600 X 2 310 205 125
100 442109/600 X 2 330 245 145
125 442119/600 X 2 340 295 170
200 7 442090/600 18

(180)

 2 040 2 550 56 49
10 442091/600 2 640 62 52
12.7 442099/600 2 870 67.4 54.7
15 442098/600 X 2 850 72 57
16 442092/600 2 760 74 58
25 442093/600 X 2 980 92 67
38 442096/600 X 3 050 118 80 Yellow
50 442094/600 X 3 060 142 92
63.5 442097/600 3 030 172 108.5
77 442095/620 3 070 202 122
80 442095/600 X 3 070 205 125
100 442110/600 X 3 110 245 145
125 442120/600 X 3 120 295 170



* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa

Example of order : MRG 100 C50

Spare kit : Not repairable.
