RG32 gas spring

Diameter : 32

Features

• Complies with european directive PED 97/23EC
• Force from 50 to 300 daN
• Stroke up to 125 mm
• Designed for heavy duty
• Double sealing
• Oil lubricated guide ring
• Solid structure (no welding)

Thread M8 on the bottom

Print this sheet
RG32 gas spring : Micro gas springs - Quiri - 2
RG32 gas spring : Micro gas springs - Quiri - 3
RG32 gas spring : Micro gas springs - Quiri - 4

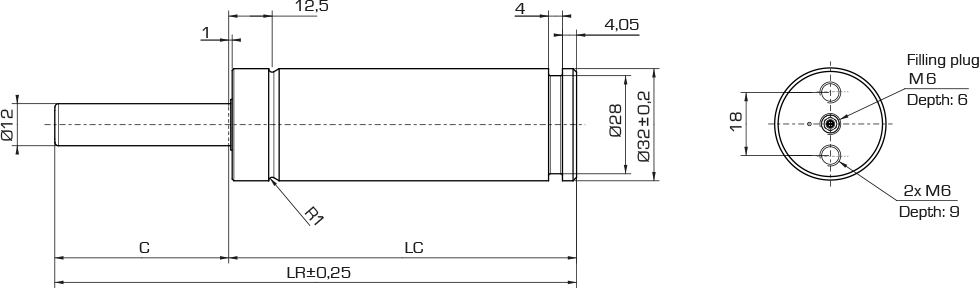

Type Force Stroke C Reference Pressure Force F1 Force F2 LR LC Color 3D Model
daN mm MPa (bar) N* N* mm mm
RG32 50 10 442131/230 4.5

(45)

 510 660 70 60 green 3D
16 442132/230 660 82 66 3D
25 442133/230 670 100 75 3D
38 442136/230 670 126 88 3D
50 442134/230 680 150 100 3D
63 442137/230 680 176 113 3D
80 442135/230 680 210 130 3D
100 442138/230 660 250 150 3D
125 442139/230 660 300 175 3D
100 10 442131/330 9

(90)

 1 120 1 320 70 60 blue 3D
16 442132/330 1 320 82 66 3D
25 442133/330 1 340 100 75 3D
38 442136/330 1 340 126 88 3D
50 442134/330 1 360 150 100 3D
63 442137/330 1 360 176 113 3D
80 442135/330 1 360 210 130 3D
100 442138/330 1 320 250 150 3D
125 442139/330 1 310 300 175 3D
150 10 442131/130 15

(150)

 1 700 2 200 70 60 black 3D
16 442132/130 2 200 82 66 3D
25 442133/130 2 230 100 75 3D
38 442136/130 2 240 126 88 3D
50 442134/130 2 260 150 100 3D
63 442137/130 2 260 176 113 3D
80 442135/130 2 260 210 130 3D
100 442138/130 2 190 250 150 3D
125 442139/130 2 190 300 175 3D
200 10 442131/430 18

(180)

 2 040 2 640 70 60 yellow 3D
16 442132/430 2 640 82 66 3D
25 442133/430 2 670 100 75 3D
38 442136/430 2 680 126 88 3D
50 442134/430 2 710 150 100 3D
63 442137/430 2 710 176 113 3D
80 442135/430 2 710 210 130 3D
100 442138/430 2 630 250 150 3D
125 442139/430 2 620 300 175 3D

* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa

Example of order: RG32 100 C50

Spare Kit : 896430/000. Composition : guide ring, seals, valve and lubricant.
