RG 300F gas spring

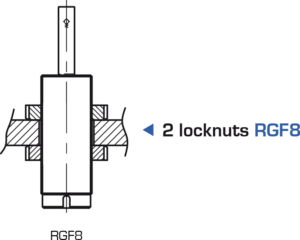

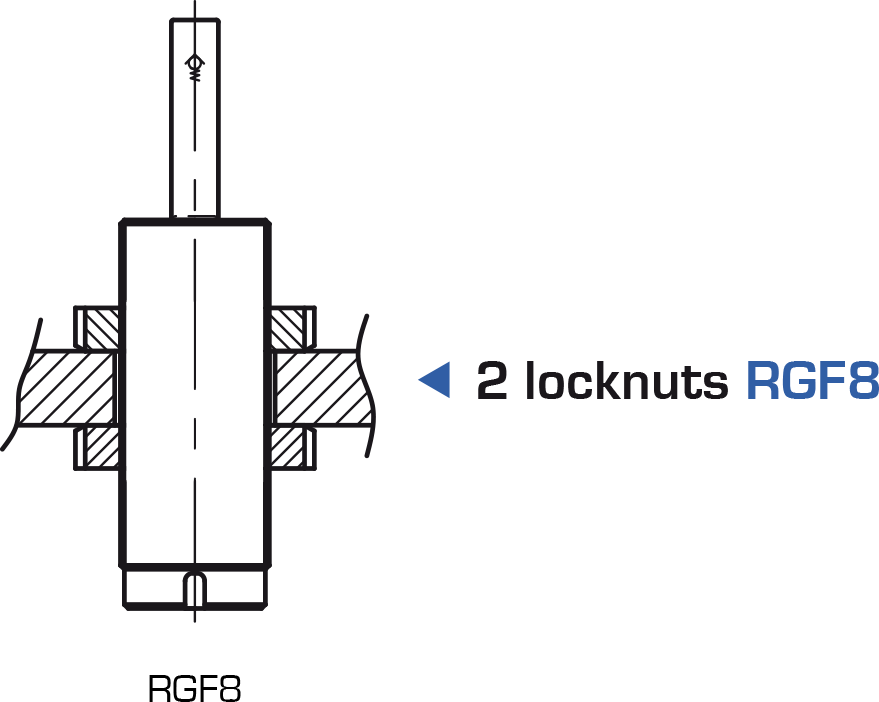

Customer can use locknuts to fix gas springs.
You must order two locknuts to fixe the gas spring properly.
| Type | Force
daN |
Stroke C
mm |
Order code | Pressure
MPa (bar) |
Force F1
N* |
Force F2
N* |
LR
mm |
LC
mm |
| RG | 300 F | 10 | 442241/000 | 18
(180) (!)
|
3 000 | 5 340 | 70 | 60 |
| 16 | 442242/000 | 82 | 66 | |||||
| 25 | 442243/000 | 100 | 75 | |||||
| 38 | 442246/000 | 126 | 88 | |||||
| 50 | 442244/000 | 150 | 100 | |||||
| 63 | 442247/000 | 176 | 113 | |||||
| 80 | 442245/000 | 210 | 130 | |||||
| 100 | 442248/000 | 250 | 150 |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order : RG 300F C50
Spare Kit : 896527/000
Composition : guide ring, seals, valve and lubricant.
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure. (<18 MPa)
