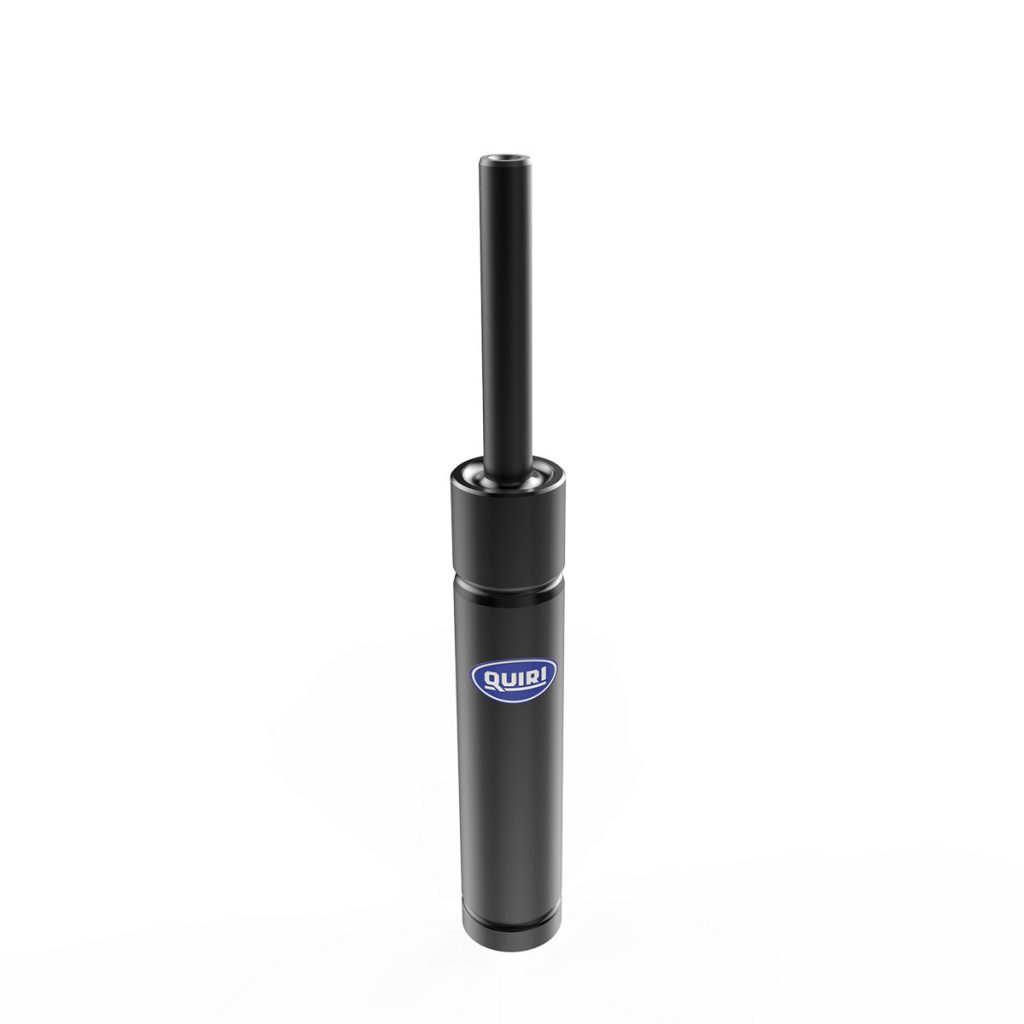

RG 19

Diameter : 19

Features

• Body diam. 19 mm
• Inflating valve on the bottom
• Cannot be used in piping system
• Different force depends on different pressure

Print this sheet
RG 19 : Micro gas springs - Quiri - 2
RG 19 : Micro gas springs - Quiri - 3
RG 19 : Micro gas springs - Quiri - 4
Type Force

daN

 Stroke C

mm

 Order code Pressure

MPa

(bar)

 Force F1

N*

 Force F2

N*

 LR

mm

 LC

mm

 Colour
RG 19 30 7 442180/500 6

(60)

 310 360 56 49
10 442181/500 380 62 52
15 442182/500 390 72 57
16 442183/500 74 58
25 442184/500 400 92 67 Green
38 442185/500 410 118 80
50 442186/500 420 142 92
63.5 442187/500 430 172 108.5
80 442188/500 430 205 125
100 442189/500 430 245 145
125 442190/500 430 295 170
50 7 442180/600 10

(100)

 510 580 56 49
10 442181/600 620 62 52
15 442182/600 630 72 57
16 442183/600 640 74 58
25 442184/600 650 92 67 Blue
38 442185/600 670 118 80
50 442186/600 690 142 92
63.5 442187/600 700 172 108.5
80 442188/600 700 205 125
100 442189/600 700 245 145
125 442190/600 710 295 170
70 7 442180/700 14

(140)

 710 810 56 49
10 442181/700 860 62 52
15 442182/700 880 72 57
16 442183/700 890 74 58
25 442184/700 900 92 67 Red
38 442185/700 940 118 80
50 442186/700 950 142 92
63.5 442187/700 970 172 108.5
80 442188/700 980 205 125
100 442189/700 970 245 145
125 442190/700 980 295 170
90 7 442180/400 18

(180)

 910 1 040 56 49
10 442181/400 1 100 62 52
15 442182/400 1 130 72 57
16 442183/400 1 140 74 58
25 442184/400 1 160 92 67 Yellow
38 442185/400 1 200 118 80
50 442186/400 1 220 142 92
63.5 442187/400 1 240 172 108.5
80 442188/400 1 250 205 125
100 442189/400 1 240 245 145
125 442190/400 1 260 295 170



*(N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x10-1MPa

Example of order : RG 19 C50

Spare kit : Not repairable.
