Coupling screw for BDE

Print this sheet
Coupling screw for BDE : Hydraulic block cylinders BDE - Quiri

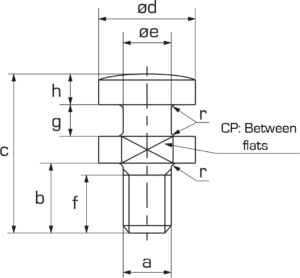

TYPE Units BDE 25 BDE 32 BDE 40 BDE 50 BDE 63 BDE 80 BDE 100 BDE 125
VA25.10 VA40.12 VA65.16 VA100.20 VA160.27 VA250.30 – –
a M10 M12 M16 M20 M27 M30 – –
b (mm) 14.5 14.5 20 28 39 35 – –
c (mm) 32 32 40 56 75 89 – –
d (mm) 20 20 25 32 40 52 – –
e (mm) 10 10 16 18 24 30 – –
f (mm) 12 12 16 22 32 28 – –
g (mm) 6.5 6.5 7 10 13 19 – –
h (mm) 5.5 5.5 6 10 12 19 – –
R (mm) 1 1 1 1 1.5 2 – –
CP (mm) 17 19 24 30 36 46 – –

See similar accessories

Coupling screw heavy series for BDE

Pressure screw for BDE
