Coupling screw heavy series for BDE

Print this sheet
Coupling screw heavy series for BDE : Hydraulic block cylinders BDE - Quiri

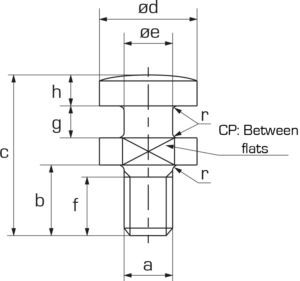

TYPE Units BDE 25 BDE 32 BDE 40 BDE 50 BDE 63 BDE 80 BDE 100 BDE 125
VC25.20 VC32.20 VC40.26 VC50.32 VC63.42 VC80.52 VC100.64 VC125.80
a M10 M12 M16 M20 M27 M30 M42 M48
b (mm) 14.5 14.5 20 28 39 35 48 58
c (mm) 44.5 44.5 56 70 90 95 120 142
d (mm) 32 32 40 50 62 79 95 122
e (mm) 20 20 26 32 42 52 64 80
f (mm) 12 12 16 22 32 28 41 51
g (mm) 10 10 12 14 17 20 24 28
h (mm) 10 10 12 14 17 20 24 28
R (mm) 1 1 1.5 1.5 2 2 2 2
CP (mm) 27 27 30 42 52 68 82 105
