Pressure screw for BDE

Print this sheet
Pressure screw for BDE : Hydraulic block cylinders BDE - Quiri

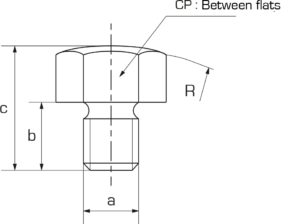

TYPE Units BDE 25 BDE 32 BDE 40 BDE 50 BDE 63 BDE 80 BDE 100 BDE 125
VB25.10 VB40.12 VB65.16 VB100.20 VB160.27 VB250.30 VB400.42 VB600.48
a M10 M12 M16 M20 M27 M30 M42 M48
b (mm) 12 12 20 25 30 35 45 60
c (mm) 22 22 30 35 47 54 71 90
R (mm) 35 45 60 60 100 100 140 250
CP (mm) 17 19 24 30 41 46 65 75
