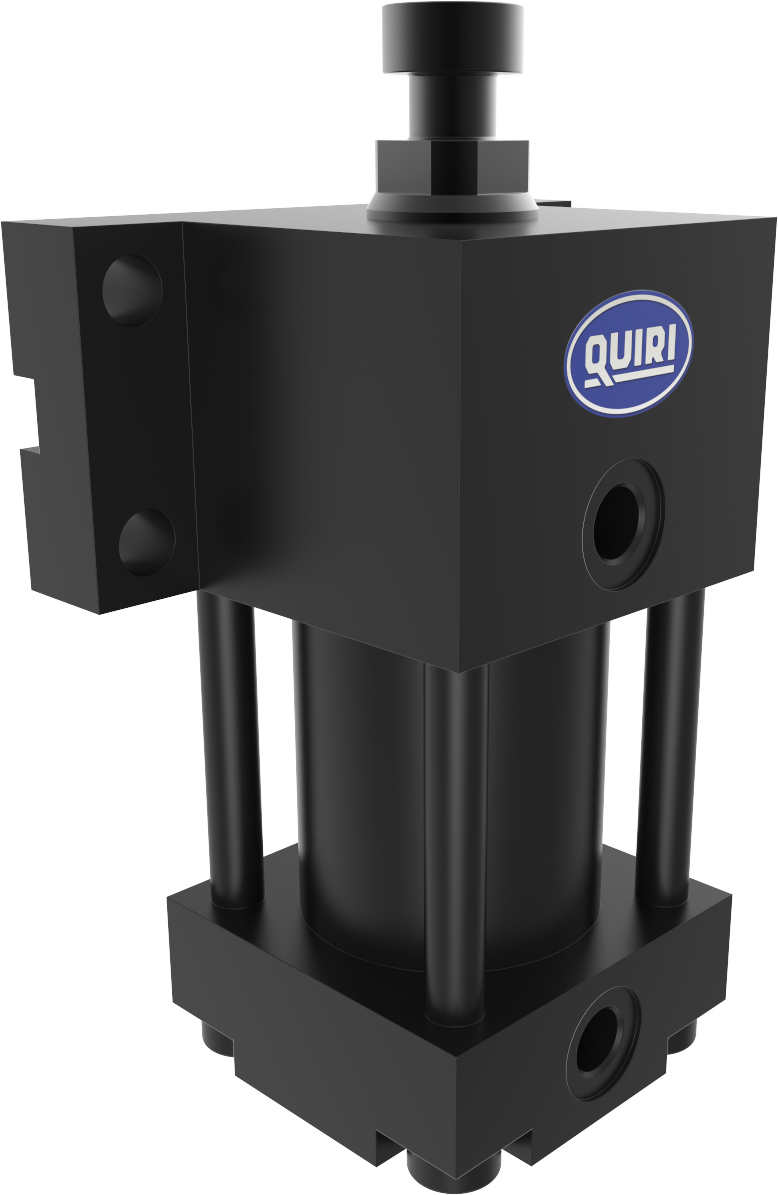

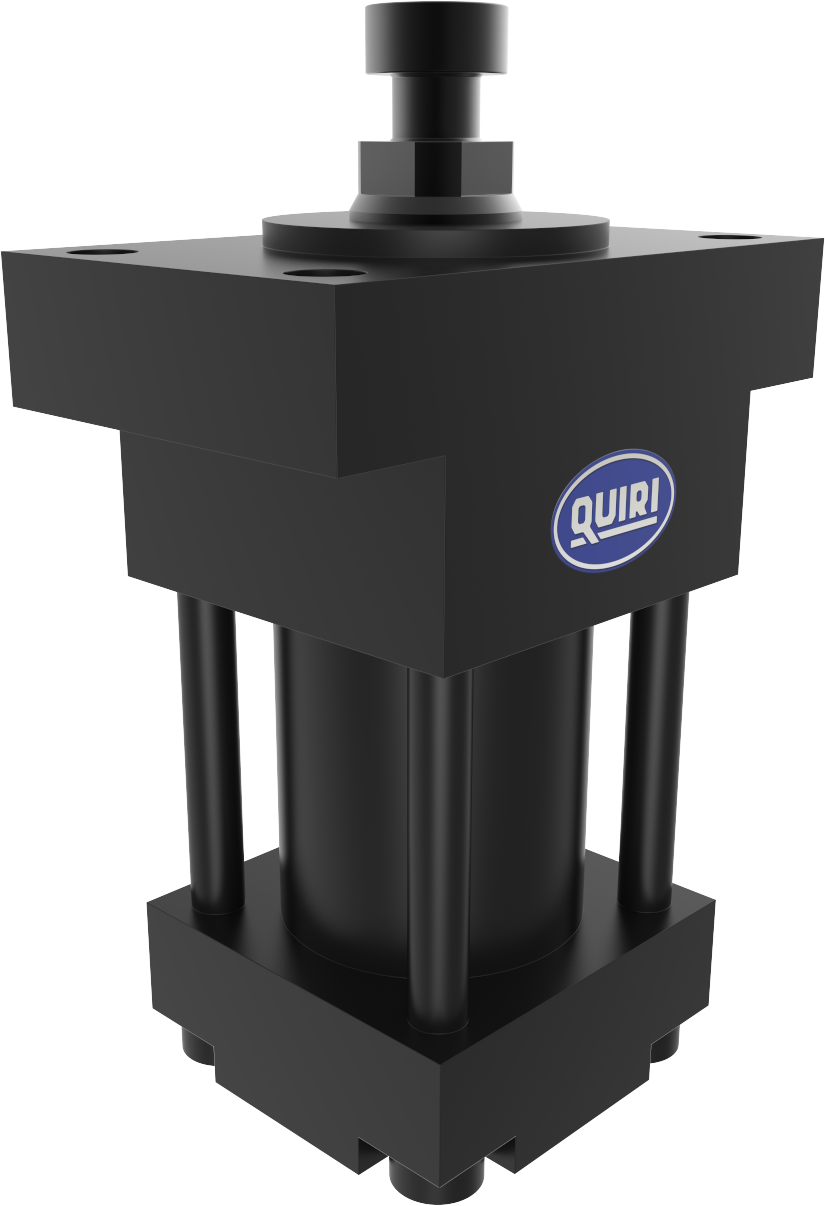

Double acting hydraulic cylinders HVB FPA

(CNOMO type)
Operating pressure: 200 bar
Front foot mounting.

Characteristics

Characteristics

Operating pressure :
Max. supply pressure: 200 bar
Test pressure: 315 bar

Permissible speed: Max. speed 5 m/min

Temperatures :
Minimum: -20°C
Maximum: +80°C with Standard seal, +150°C with Viton seal.

Fluids :
HM-HL hydraulic mineral oils 10 to 40 Cst at 50°C.
Low flammability fluids class C or D

Filtration: ≤ 200 microns

Connection: In BSPP cylindrical gas with counterbore for sealing ring.

Commissioning:
To ensure correct operation, air in both cylinder chambers should be purged by loosening the fittings, oil unpressurized. When the fluid is free of emulsion, retighten the fittings.

Print this sheet

Double acting hydraulic cylinders HVB FPA : Double acting hydraulic cylinders HVB - Quiri - 2

Bore	Units	25	32	40	50	63	80	100	125
ød (ø Rod)	(mm)	16	18	22	28	36	45	56	70
a	(mm)	45	56	63	75	85	106	125	160
p		G1/8	G1/8	G1/4	G1/4	G3/8	G3/8	G1/2	G1/2
e	(mm)	47.5	59	67.5	80	87.5	109	129.5	162
øLa	(mm)	19	19	25	25	28	28	34	34
k	(mm)	25	31	36	42.5	45	56	67	82
v	(mm)	30	32	45	44.5	57	60	70	82
x	(mm)	34	45	45	53	56	63	70	80
øLi	(mm)	6.6	9	11	11	14	18	20	22
j H8	(mm)	12	12	12	12	16	16	16	20
z	(mm)	4	4	6	6	6	6	6	6
s	(mm)	32	32	36	40	45	50	56	63
n	(mm)	45	50	55	60	70	80	90	100
m	(mm)	12	12	20	20	25	25	32	36
t	(mm)	56	71	80	95	104	132	155	195
b	(mm)	70	86	100	115	124	160	185	230
r	(mm)	18.5	21	24.5	22	29.5	33	37	41.5
y	(mm)	46	48	55	57	71	74	81	93
L	(mm)	92	102	115	125	145	152	177	198
i	(mm)	28.5	31	36.5	36	44	50	57	63
c	(mm)	12	12	15	12	17	18	20	23

Strokes

Bore		25	32	40	50	63	80	100	125
Stroke Tolerance+2 0	5	X	X	X	X	X	X	X	X
	10	X	X	X	X	X	X	X	X
	16	X	X	X	X	X	X	X	X
	25	X	X	X	X	X	X	X	X
	40	X	X	X	X	X	X	X	X
	63	X	X		X	X	X	X	X
	100		X	X	X	X	X	X	X
	160			X	X	X	X	X	X

Rod ends

Double acting hydraulic cylinders HVB FPA : Double acting hydraulic cylinders HVB - Quiri - 3

Bore	Units	25	32	40	50	63	80	100	125
ød (ø Rod)	(mm)	16	18	22	28	36	45	56	70
ød / Al	(mm)	10	10	12	12	12	12	16	16
A	(mm)	20	20	25	32	40	50	63	80
øR	(mm)	9.5	9.5	13	17	23.5	29.5	38.5	48.5
øCl	(mm)	9.5	9.5	11.5	11.5	11.5	11.5	15	15
i	(mm)	2.5	2.5	3	3	3	4	5	5
M	(mm)	M12 x 1.25	M12 x 1.25	M16 x 1.5	M20 x 1.5	M27 x 2	M33 x 2	M42 x 2	M56 x 2
C	(mm)	M8 x 1.25	M8 x 1.25	M10 x 1.5	M16 x 1.5	M20 x 1.5	M27 x 2	M33 x 2	M42 x 2
Ml	(mm)	M8 x 1.25	M8 x 1.25	M10 x 1.25	M10 x 1.5	M10 x 1.5	M10 x 1.5	M12 x 1.25	M12 x 1.25
n	(mm)	0.2	0.2	0.2	0.2	0.3	0.3	0.5	0.5
øE	(mm)	14	15	18	22.5	28	35.5	45	56
øF	(mm)	8	9	11.2	14	18	22.4	28	35.5
H/J	(mm)	6	6	8	10	12.5	16	20	25
r	(mm)	0.3	0.3	0.5	0.5	0.8	0.8	1.2	1.2
B	(mm)	8	8	8	8	12.5	12.5	14	14
Bl	(mm)	5	5	6	6	6	6	8	8
K	(mm)	12	13	17	22	30	36	46	60
Ki	(mm)	8	8	10	10	10	10	13	13

Information rod

Double acting hydraulic cylinders HVB FPA : Double acting hydraulic cylinders HVB - Quiri - 4

Bore	Units	25	32	40	50	63	80	100	125
ød (ø Rod)	(mm)	16	18	22	28	36	45	56	70
a	(mm)	45	56	63	75	85	106	125	160
øBi	(mm)	36	36	42	42	63	63	80	80
ødi	(mm)	10	10	12	12	12	12	16	16
Ui	(mm)	8	8	12	12	12	12	15	15
Li	(mm)	20	20	32	32	32	32	35	35
L	(mm)	92	102	115	125	145	152	177	198
