Check valve HRP

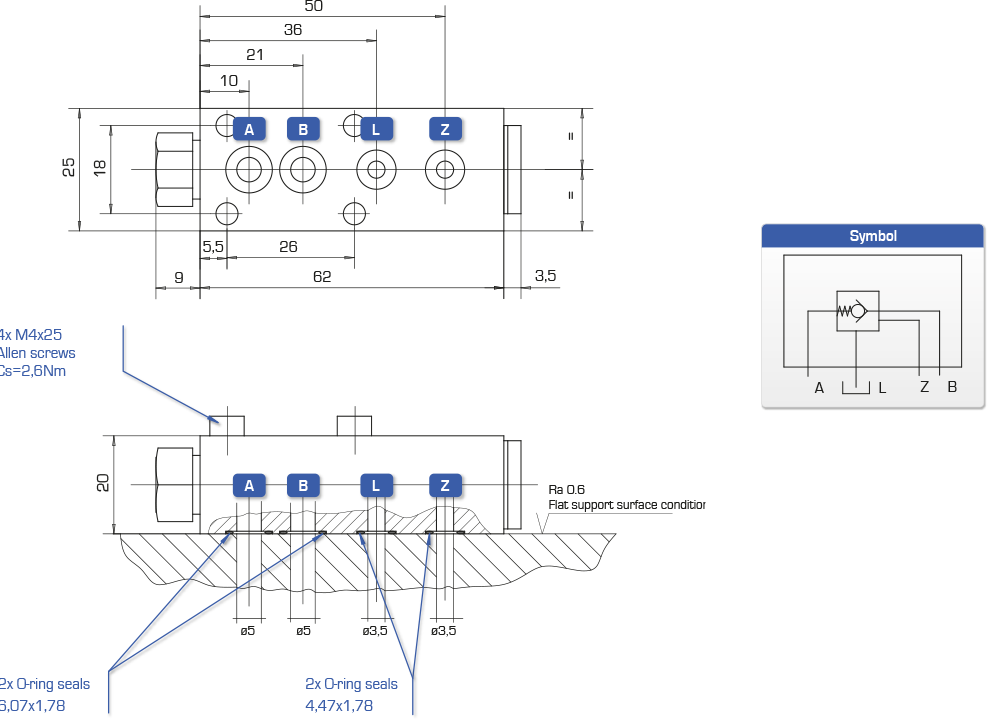

Mounting on plate or in line
The check valve allows free flow from B to A and prevents flow from A to B. A to B is opened by hydraulic control Z. The pipe L is provided to drain any leaks.
| Port pressure | ||||||||
| Type | Reference | |||||||
| A | B | Z | L | Max flow
rate |
Weight
|
Pressure ratio:
(Control/A) |
||
| bar | bar | bar | bar | l/min | Kg | |||
| HRP 1 | A 64 034 | 700 | 700 | 700 | None | 20 | 0,25 | 1/3 |
