Spherical accumulators AC

Pressure: 400 bar

Operating principle

The hydropneumatic accumulator is a reservoir of power which is called on if needed.

Characteristics

• Membrane accumulator
• recommended nitrogen pre-inflation pressure: 0.8 x service pressure

Print this sheet

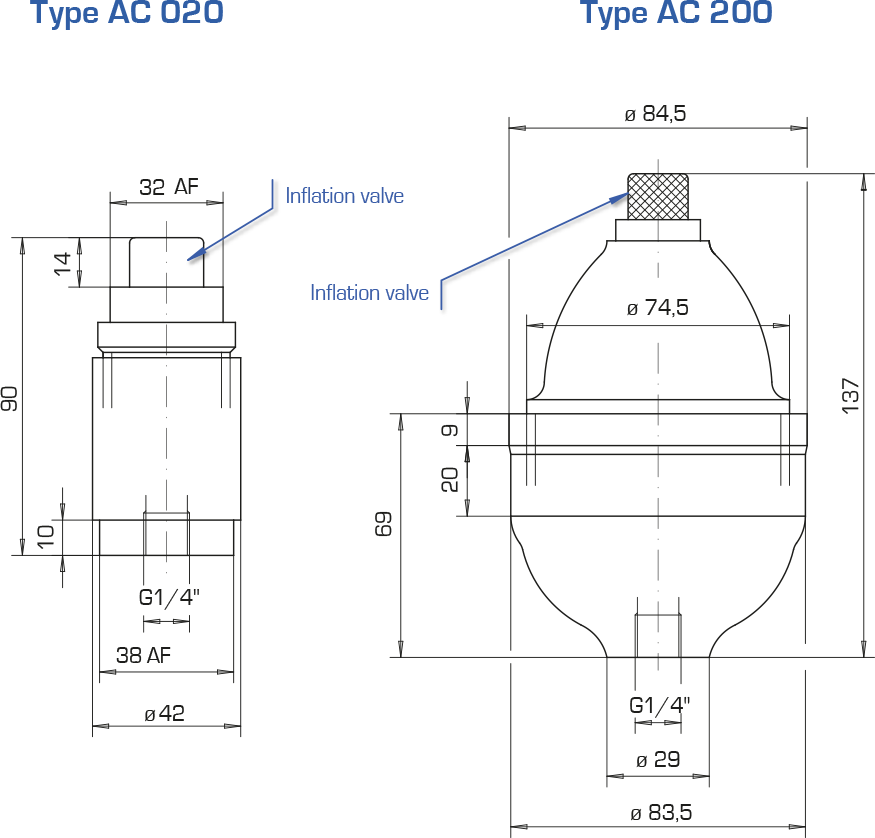

Spherical accumulators AC : Hydraulic unit and components - Quiri - 2
Type Reference
Pressure

Max.



 Capacity





 Weight




bar cm3 Kg
AC 020 A 66 316 400 20 0.64
AC 200 A 66 317 400 200 1.20
