Swing clamp with planar rotation – 160 bar – Pneumatic sensing of released position PL**XB1

Double-acting - planar rotation - pneumatic sensing
released position - Force at 160 bar: 10 and 15 kN

Supply through counter-bores under the flange ring
Fastening with screws

Swing clamp with planar rotation – 160 bar – Pneumatic sensing of released position PL**XB1 : Swing clamps with position detection - Quiri

Characteristics

• detection by leak-free valves, released position
• right or left planar rotation, 90° ±2°
• bleeder near clamping and release
• rod indexing
• maximum service pressure: 160 bar

Options

• clamping arm: see accessories section
• 60°, 45° or 0° rotation on request

Nota

Clamps are supplied with O-rings, lock nut and lock washer
(dimensions and tightening torque: see Lock washer for clamp type P11, P21 and Nut for clamp type P31 and P41)
O-rings: 7.65 x 1.78 90 NBR

Print this sheet

Swing clamp with planar rotation – 160 bar – Pneumatic sensing of released position PL**XB1 : Swing clamps with position detection - Quiri - 2

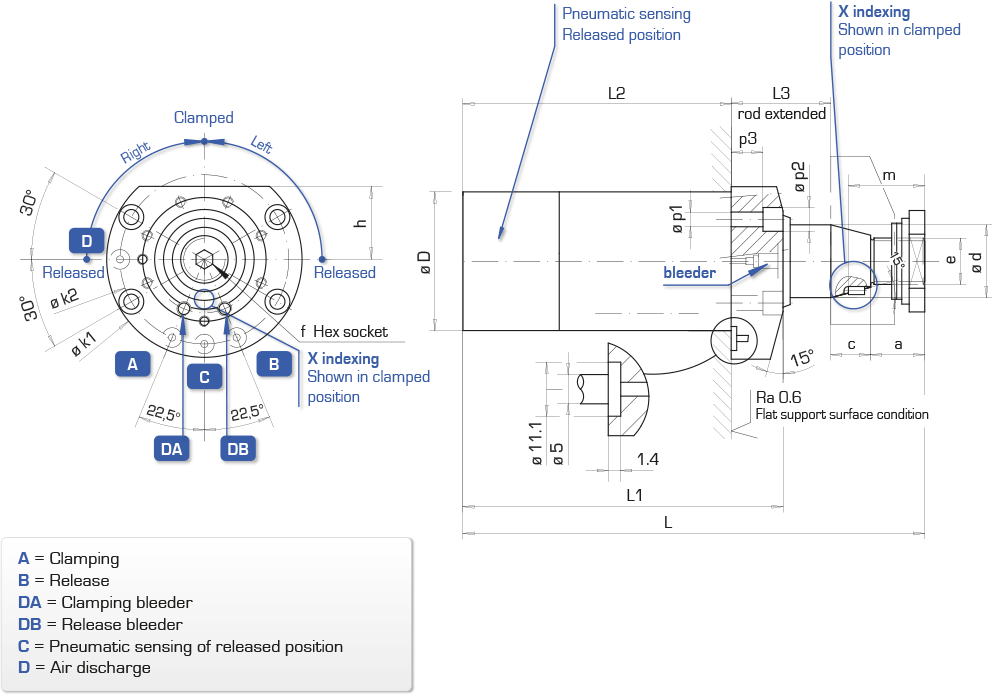

Definition of forces depending on clamping arm: consult the guide
Important recommendations: consult the guide

F max at 160 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	Type	Reference
F max at 160 bar	Rod ød	Travel	Max flow rate A	Swept volume A B	Direction of rotation	Type	Reference	a	c	øD	e	f span-ner	h	øk1 øk2	L	L1	L2	L3	m	p1	p2	p3
kN	mm	mm	l/min	cm³				mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
10	36	12	2	41	right	PL 31 DX B1	192 048/050	18	20	80	M24 x 1.5	10	41	110	242.5	189.5	161.5	43	29	8.5	14	11	3D
10	36	12	2	53	left	PL 31 GX B1	192 048/150	18	20	80	M24 x 1.5	10	41	95	242.5	189.5	161.5	43	29	8.5	14	11	3D
15	42	12	3	74	right	PL 41 DX B1	192 049/050	20	22	93	M30 x 1.5	12	48	130	261	204	174	45	31	10.5	17	12	3D
15	42	12	3	88	left	PL 41 GX B1	192 049/150	20	22	93	M30 x 1.5	12	48	112	261	204	174	45	31	10.5	17	12	3D
