Work support – Screw type M30 x1.5 – 500 bar – double-acting with metal scraper AVVD12

Double-acting - Screw type
Locking force at 500 bar: 9.5 kN

Definition

Hydraulic supports are designed to support the workpieces in a specific plane and eliminate vibration during machining

Characteristics

• threaded steel body with anti-corrosion treatment
• treated steel rod
• very compact design
• travel: 8 mm and 15 mm
• hydraulic extension and locking

Option

Special models made on request.

Print this sheet

Work support – Screw type M30 x1.5 – 500 bar – double-acting with metal scraper AVVD12 : Hydraulic work supports - Quiri - 2

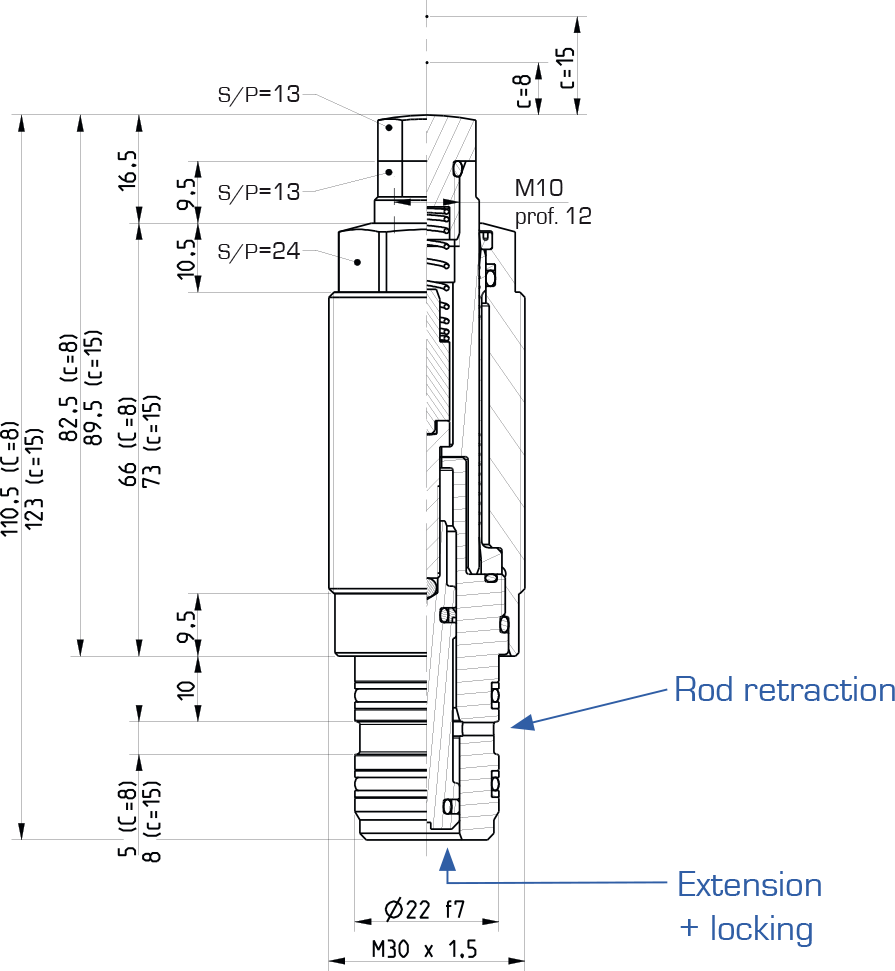

Recess machining dimensions

Work support – Screw type M30 x1.5 – 500 bar – double-acting with metal scraper AVVD12 : Hydraulic work supports - Quiri - 3

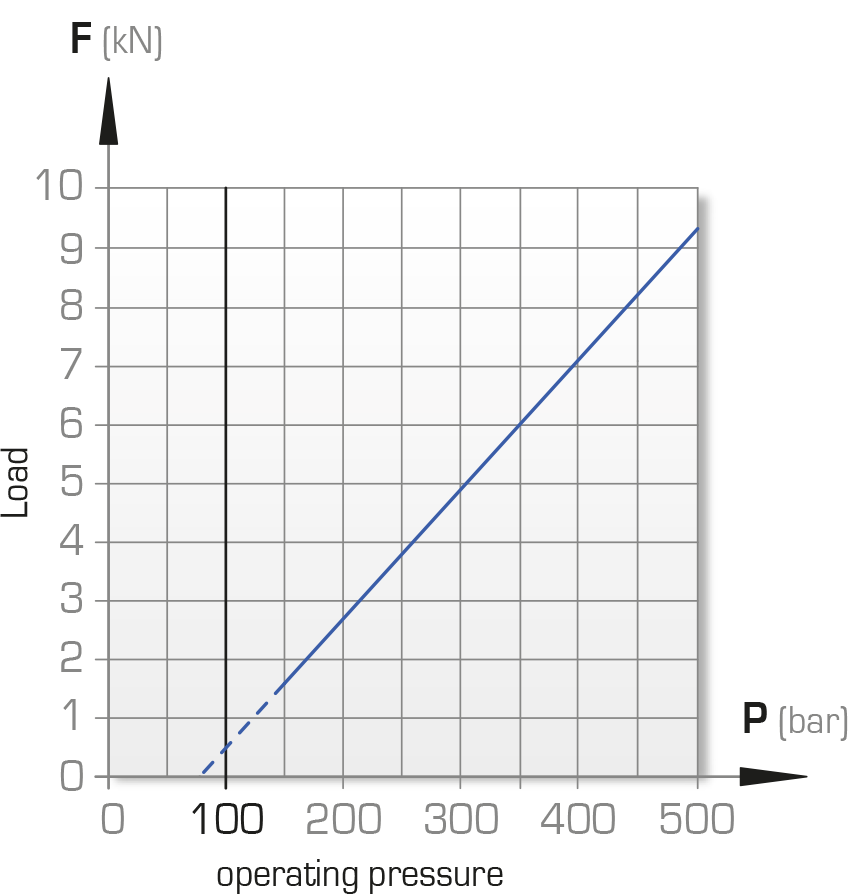

Locking force diagram

Work support – Screw type M30 x1.5 – 500 bar – double-acting with metal scraper AVVD12 : Hydraulic work supports - Quiri - 4

Locking force			Elastic collapse at 500 bar	Contact force Min – Max	Rod ød	Travel	Displaced volume	Max flow rate	Min. recommended pressure	Temperature	Tightening torque	Weight	Type	Reference
500 bar	350 bar	160 bar	Elastic collapse at 500 bar	Contact force Min – Max	Rod ød	Travel	Displaced volume	Max flow rate	Min. recommended pressure	Temperature	Tightening torque	Weight	Type	Reference
kN	kN	kN	µm/kN	N	mm	mm	cm³	cm³/s	bar	°C	Nm	kg
9.5	6.5	2	4	11 – 18	16	8	6.3	25	160	0 to 70	60	0.39	AVVD12 – C08	751 109/600
9.5	6.5	2	4	8 – 18	16	15	11.9	25	160	0 to 70	60	0.44	AVVD12 – C15	751 157/600
