Lock nut cylinders, spring return – 500 bar – SLE

Light alloy

Features
Options

Features

• Single acting, spring return
• Maximum pressure 600 bar (stroke to be limited at 80% of the whole stroke)
• Corrosion resistant light alloy body
• Steel (zinc plate and chromate) piston rod for cylinders 10, 20 T
• Corrosion resistant light alloy piston rod for cylinders 45, 75, 110 T
• Delivered in standard without coupler

Options

A+B : Body collar thread with rubber protection *
F : 4 base threaded mounting holes
T : Threading of the dz hole

Print this sheet

Lock nut cylinders, spring return – 500 bar – SLE : Lifting light alloy cylinders 500 bar - Quiri - 2

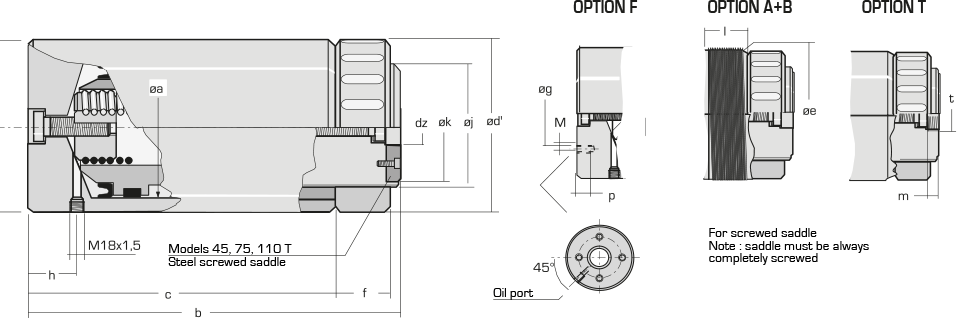

Cylinder category	Working force 500 bar	Maxi. force 600 bar	Stroke	Effective area	Oil volume	Reference	Dimensions (mm)										Options			Weight
							a	b	c	d	d’	f	h	j ***	k	dz	Option A	Option F	Option T
																	e	M x p	t
Tons	kN	kN	mm	cm2	cm3												e	M x p	t	kg
Tons	kN	kN	mm	cm2	cm3												l	on Ø g	m	kg
10	98,2	117,8	75	19,63	147	SLE 10/75	50	245	208	68,5	72	32	25	42×3	36	16	M68x2 50	M6x15 Ø 45	M20x1,5 25	4,3
10	98,2	117,8	150	19,63	294	SLE 10/150	50	320	283	68,5	72	32	25	42×3	36	16	M68x2 50	M6x15 Ø 45	M20x1,5 25	5,2
20	192,4	230,8	75	38,48	289	SLE 20/75	70	265	222	100,5	100	38	28	60×3	55	25	M100x2 70	M8x20 Ø 65	M30x1,5 30	9,5
20	192,4	230,8	150	38,48	577	SLE 20/150	70	340	297	100,5	100	38	28	60×3	55	25	M100x2 70	M8x20 Ø 65	M30x1,5 30	11,5
45	475	569,9 *	75	95,03	713	SLE 45/75	110	300	236	145,5	145	55	40	95×6	84	25	145×3 70 **	M10x22 Ø 90	M30x1,5 25	19
45	475	569,9 *	200	95,03	1901	SLE 45/200	110	425	361	145,5	145	55	40	95×6	84	25	145×3 70 **	M10x22 Ø 90	M30x1,5 25	23
75	769,3	923,2	75	153,93	1154	SLE 75/75	140	345	266	190,5	190	65	45	125×6	105	35	190×4 70 **	M10x22 Ø 120	M38x2 15	37
75	769,3	923,2	200	153,93	3079	SLE 75/200	140	470	391	190,5	190	65	45	125×6	105	35	190×4 70 **	M10x22 Ø 120	M38x2 15	44
110	1134,4	1361,2 *	75	227	1703	SLE 110/75	170	370	285	230,5	230	70	55	155×6	128	35	225×5 70 **	M12x25 Ø 150	M38x2 15	55
110	1134,4	1361,2 *	200	227	4540	SLE 110/200	170	495	410	230,5	230	70	55	155×6	128	35	225×5 70 **	M12x25 Ø 150	M38x2 15	65

* For 45T and 110T cylinders with Option A, maximum pressure is 500 bar

** Semi-trapezoidal threading

*** Trapezoidal threading

Product accessories

Find our guide about couplers on this page: Couplers fitted on single acting QUIRI 500 cylinders
