Step cylinders, spring return – 500 bar – SLB

Light alloy

Features

Features

Single acting, spring return
Corrosion resistant light alloy body and piston rod
Fitted with :
– Light alloy support frame
– Strap carrying handles
– Specially fitted with RM 518 coupler

Print this sheet

These cylinders can also be made with hydraulic return, please contact us

Step cylinders, spring return – 500 bar – SLB : Lifting light alloy cylinders 500 bar - Quiri - 2

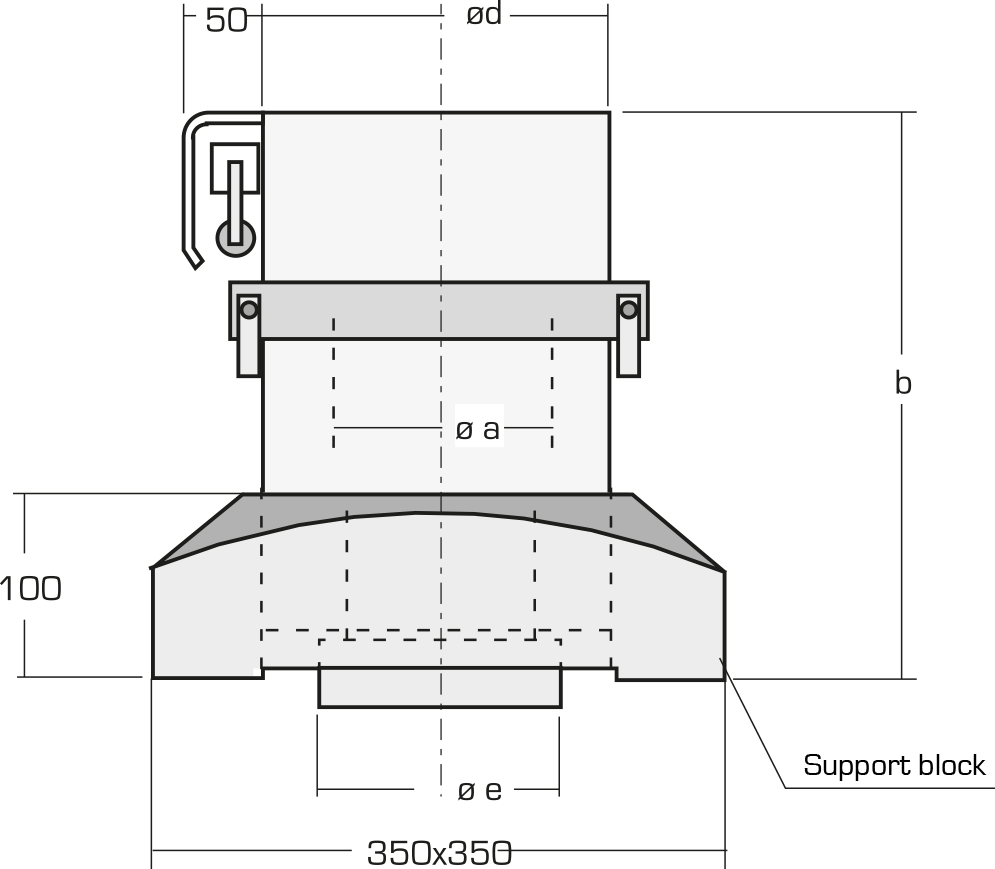

Cylinder category	Working force 500 bar	Stroke	Effective area	Oil volume	Reference	Dimensions (mm)				Weight
Tons	kN	mm	cm2	cm3		a	b	d	e	kg
45	475	200	95,03	1901	SLB 45/200	110	385	145,5	150	46
75	769,3	200	153,93	3079	SLB 75/200	140	415	190,5	150	60
110	1134,4	200	227	4540	SLB 110/200	170	440	230,5	155	82

Cylinder category	Support blocks, standard height 150 mm
	Under support frame			Under piston rod
Tons	Dimensions (mm)	Weight (kg)	Reference	Dimensions (mm)	Weight (kg)	Reference
45	350 x 90	13	CEB 45	350 x 130	13,5	CEP 45
75
110				350 x 150	16,5	CEP 110

Working

Step cylinders, spring return – 500 bar – SLB : Lifting light alloy cylinders 500 bar - Quiri - 3

1 : Installation
2 : First lift
3 : Support block installation
4 : Piston return
5 : Under piston block installation
6 : Second lift
7 : Support block installation
8 : Piston return
9 : Third lift
10 : Etc……….
