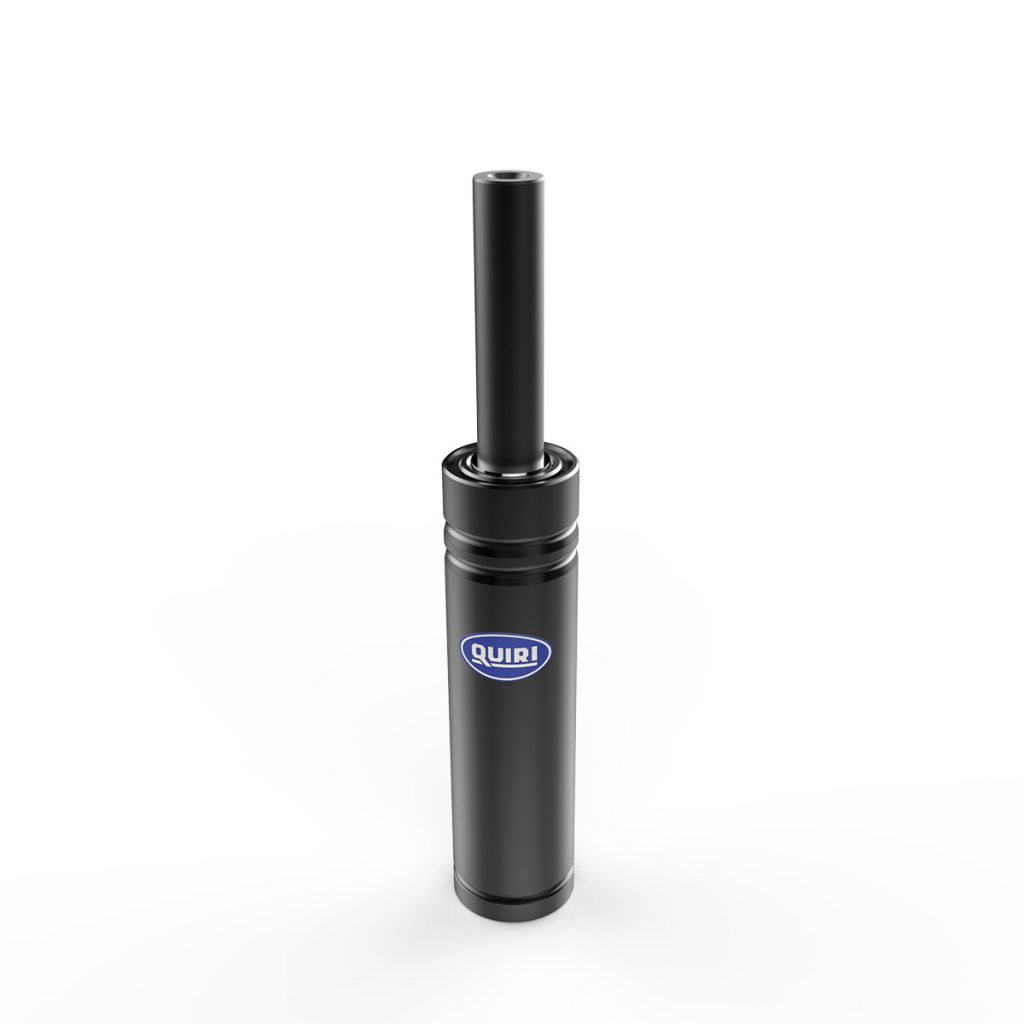

MICRO MRG GAS SPRINGS

Industry concerned :
Product concerned : Gas Springs
MICRO MRG GAS SPRINGS : Gas Springs - Quiri
Gas spring with body diameter 25 mm, force 20 to 200 daN and stroke 7 to 125 mm.

Micro MRG gas springs with following specifications :

  • Body diameter : 25 mm
  • 4 forces available, 50 to 200 daN
  • 13 strokes available, 7 to 125 mm
  • Inflating valve on the bottom
  • Not connectable, not repairable
  • Following ISO norm
  • Maximum inflating pressure : 180 bar
  • Minimum inflating pressure : 25 bar
  • Temperature limit : 0 / +70°C
  • Maximum piston rod speed : 1.6 m/s
  • Gaz : nitrogen
