R-Lock© self-locking swing clamp RL

Double-acting - Supply through taps
Locking force: 15 to 50 kN

Definition

Absolute safety if pressure is lost!

This locking system uses the absence of pressure and makes it possible to maintain fully controlled clamping force when the clamp is disconnected from its source. In addition it is completely insensitive to vibrations.

In all applications involving palletising, transfer, quick changing of press tools, mould closing and test benches, these clamps provide safe operation.

Characteristics

• supply through gas taps
• locked by the absence of pressure
• piston release pressure: 300 or 500 bar

Options

• 60°, 45° or 30° angle of rotation on request
• sensing rod to CNOMO standards
• double clamping arm available on request
• pressure intensifier on request
• special models on request

Print this sheet

R-Lock© self-locking swing clamp RL : Positive locking cylinders - Quiri - 2

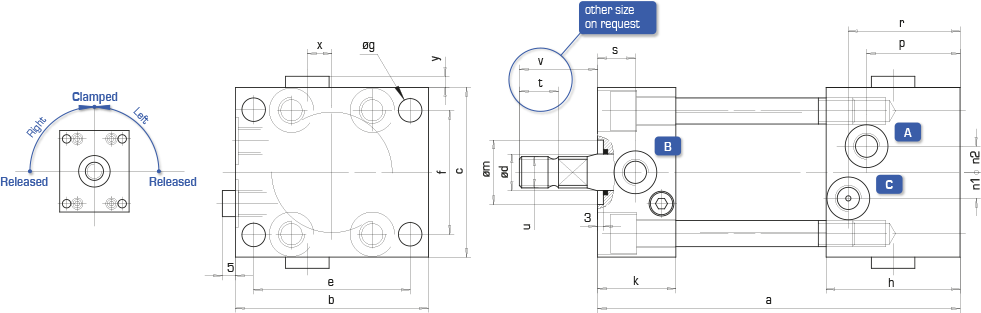

Type	A Rod extension	B Rod retraction	C Release
RL 15	G 1/8″	G 1/8″	G 1/4″
RL 30	G 1/4″ *	G 1/4″ *	G 1/4″
RL 50	G 1/4″ *	G 1/4″ *	G 1/4″

* G 3/8″ on request

** The length “a” of the clamp depends on the release pressure and the locking force required.
Special models can be made upon request.

Thrust force	Travel +0.5 0	Active section		Rod øD	Rod ød	Locking force	Release pressure +30 0	Type
Thrust force	Travel +0.5 0	Active section		Rod øD	Rod ød	Locking force	Release pressure +30 0	Type	a	b	c	e	f	g ø	h	k	m ø	n1	n2	p	r	s	t	u	v	x	y
kN	mm	cm²		mm	mm	kN	bar		mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm
15 at 230 bar	10	P	8.04	32	14	15 min	500	RL 15/5	155	74	65	60	48	9	61	30	30	10	10	45.5	50	14.5	16	M12x1.25	30	11.5	9	3D
15 at 230 bar	10	T	6.50	32	14	15 min	300	RL 15/3	228	74	65	60	48	9	61	30	30	10	10	45.5	50	14.5	16	M12x1.25	30	11.5	9	3D
30 at 299 bar	10	P	12.56	40	18	30 min	500	RL 30/5	178	90	78	72	56	11	66	35	34	12.5	11	48	52	20	18	M16 x 1.5	35	15.6	10	3D
30 at 299 bar	10	T	10.02	40	18	30 min	300	RL 30/3	251	90	78	72	56	11	66	35	34	12.5	11	48	52	20	18	M16 x 1.5	35	15.6	10	3D
50 at 250 bar	10	P	23.75	55	22	50 min	500	RL 50/5	202	108	96	87	60	13	74	37	42	14	12	58	63	21	28	M20 x 1.5	44	20	14	3D
50 at 250 bar	10	T	19.95	55	22	50 min	300	RL 50/3	280	108	96	87	60	13	74	37	42	14	12	58	63	21	28	M20 x 1.5	44	20	14	3D
