Supply through counter-bores under the flange ring
Double-acting - with helical rotation - pneumatic released position sensing
Force at 250 bar: 11.8 to 36.5 kN
Supply through counter-bores under the flange ring
• detection by leak-free valves, released position
• right or left planar rotation, 90° ±2°
• bleeder near clamping and release
• rod indexing
• maximum service pressure: 250 bar
• clamping arm: see accessories section
• 60°, 45° or 0° rotation on request
Definition of forces depending on clamping arm: see below
Important recommendations: consult the guide
F max
at 250 bar |
Rod
ød |
Travel
of torque |
Travel
total
|
Max flow rate
A |
Swept volume
A B |
Direction
of rotation |

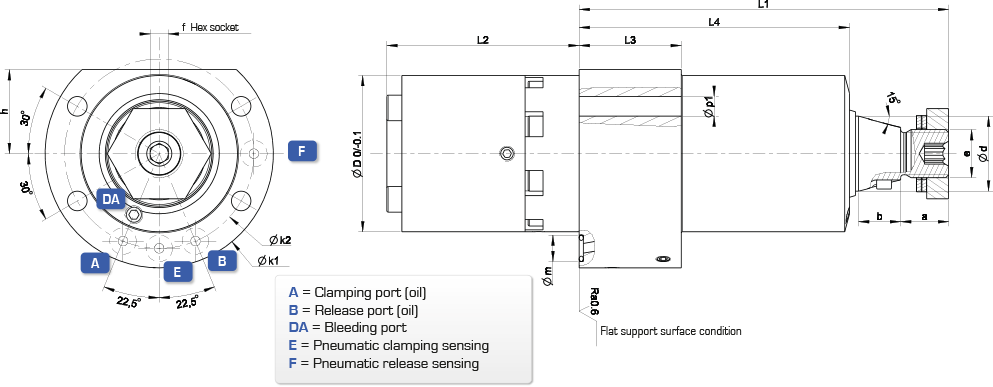

Type | Reference | ||||||||||||||
a
|
b
|
øD
|
ød
|
e
|
f
span-ner |
h
|
øk1
øk2
|
L1
|
L2
|
L3
|
L4
|
øm
|
øp1
|
|||||||||
kN | mm | mm | mm | l/min | cm3 | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
11.8 | 12 | 12 | 24 | 0.7 | 11.33 | right | HLF 21 DX B1 | 191 241/050 | 16 | 14 | 52 | 25 | M16 x 1.5 | 6 | 28 | 76 | 123 | 64 | 34 | 90 | 8.8 | 6.5 |
18.87 | left | HLF 21 GX B1 | 191 241/150 | 63 | ||||||||||||||||||
23.6 | 15 | 14 | 29 | 1.6 | 27.44 | right | HLF 31 DX B1 | 192 160/050 | 18 | 20 | 72 | 36 | M24 x 1.5 | 10 | 38 | 110 | 152.5 | 75 | 36 | 111.5 | 11 | 10.5 |
49.60 | left | HLF 31 GX B1 | 192 160/150 | 90 | ||||||||||||||||||
36.5 | 15 | 17 | 32 | 2.8 | 46.15 | right | HLF 41 DX B1 | 192 231/050 | 20 | 22 | 88 | 42 | M30 x 1.5 | 10 | 45 | 128 | 164.5 | 82 | 36 | 116.5 | 11 | 10.5 |
80.45 | left | HLF 41 GX B1 | 192 231/150 | 108 |
