Electric hydraulic pumps, tank 8 and 16 liters – GE*
• Electric motor EUROPEAN STANDARDS, 240/415V-50Hz three-phase,
• 1500tr/min, IP55 class F
• Radial piston pumps
• Tank 8 and 16 liters (delivered with oil) with :
– Filling plug with air breather and oil level gauge
– Drain plug, carrying handle
– Pump drain screw
• Adjustable pressure relief valve
• 240V single-phase motor
• Switch box with electrical shut-down feature to prevent from unintentional restarting of motor following an electrical service interruption
• Protection frame
• Wheels
• Oil retaining tray
Quiri hydraulic pumps are designed with rigorous selection of component (pumps, motors, valves) for high industrial
performance and low maintenance costs
GEM models are fitted with a start/stop motor switch and a 3m long electric cable without plug
GEE models are fitted with an electric switch box with remote control and a 3m long electric cable without plug

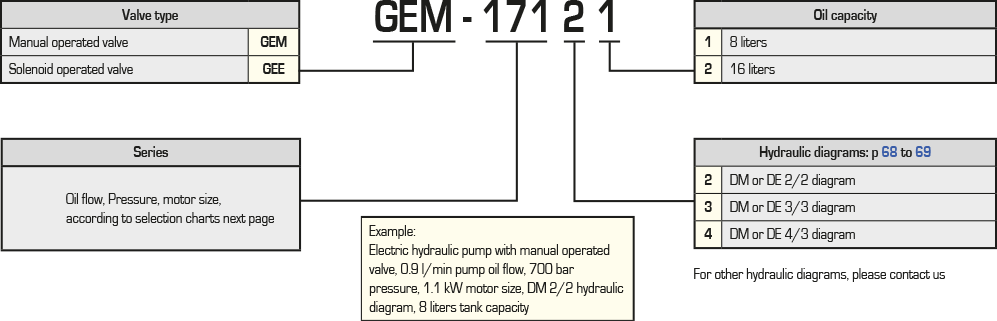

How to built up your pump model number
Series selection

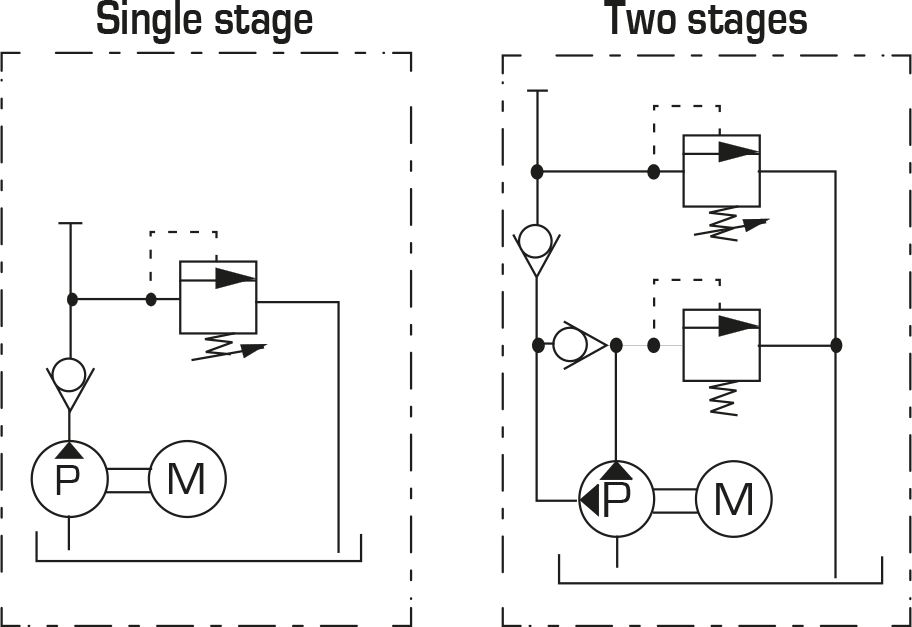

| One speed electric hydraulic pump (single stage) | ||||
|
Series
|
Pump | Maximum
pressure bar |
Motor
size kW |
|
| Oil flow
l/min |
Number of
pistons |
|||
| 141 | 3,6 | 3 | 400 | 3 |
| 151 | 2,5 | 3 | 500 | 2,2 |
| 161 | 1,5 | 3 | 600 | 1,5 |
| 171 | 0,9 | 3 | 700 | 1,1 |
| 172 | 1,4 | 5 | 700 | 1,8 |
| 173 | 2,1 | 7 | 700 | 3 |
| Two speeds electric hydraulic pump (two stages) * | |||||
|
Series
|
Pump | Maximum
pressure bar |
Motor
size kW |
||
| Oil flow l/min | Number of
pistons |
||||
| BP | HP | ||||
| 261 | 5,3 | 1,5 | 5 | 50/600 | 1,8 |
| 271 | 8,6 | 0,9 | 7 | 50/700 | 1,8 |
| 272 | 4,7 | 0,9 | 5 | 50/700 | 1,5 |
* only with 16 liters tank
| Motor size
kw |
Tank
l |
a
mm |
b
mm |
c
mm |
d
mm |
ee *
mm |
em *
mm |
f
mm |
g
mm |
h
mm |
i
mm |
j
mm |
k
mm |
l
mm |
Weight **
kg |
| 1,1 | 8 | 495 | 11 | 255 | 330 | 455 | 425 | 450 | 235 | 250 | 100 | 43 | 170 | 340 | 46 |
| 16 | 570 | 17 | 320 | 345 | 530 | 500 | 530 | 310 | 380 | 15 | 30 | 260 | 410 | 62 | |
| 1,5 / 1,8 | 8 | 495 | 11 | 255 | 330 | 455 | 425 | 450 | 235 | 250 | 100 | 43 | 170 | 340 | 50 |
| 16 | 570 | 17 | 320 | 345 | 530 | 500 | 530 | 310 | 380 | 15 | 30 | 260 | 410 | 68 | |
| 2,2 / 3 | 8 | 535 | 16 | 255 | 350 | 455 | 425 | 450 | 235 | 250 | 100 | 43 | 170 | 340 | 55 |
| 16 | 610 | 12 | 320 | 355 | 530 | 500 | 530 | 310 | 380 | 15 | 30 | 260 | 410 | 75 |
* ee – Solenoid operated valve em – Manual operated valve
** Average weight in kg with oil and valves
