3 jaws centering hydraulic pullers

Force 10 to 50 tons

Features

• With jaws holding system
• Pulling operations are easier, quicker and safer (no risk overload/jaws opening)
• Only 1 person to realize the operation

Nota

10 tons puller is delivered with support for 2 and 3 jaws

Print this sheet
3 jaws centering hydraulic pullers : Hydraulic pullers - Quiri - 2
Capacity



(Tons)

 Mechanic unit

reference

 Dimensions (mm) Weight



(kg)

 To use with hydraulic unit * Weight



(kg)

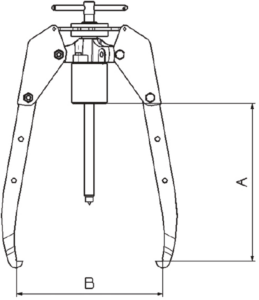

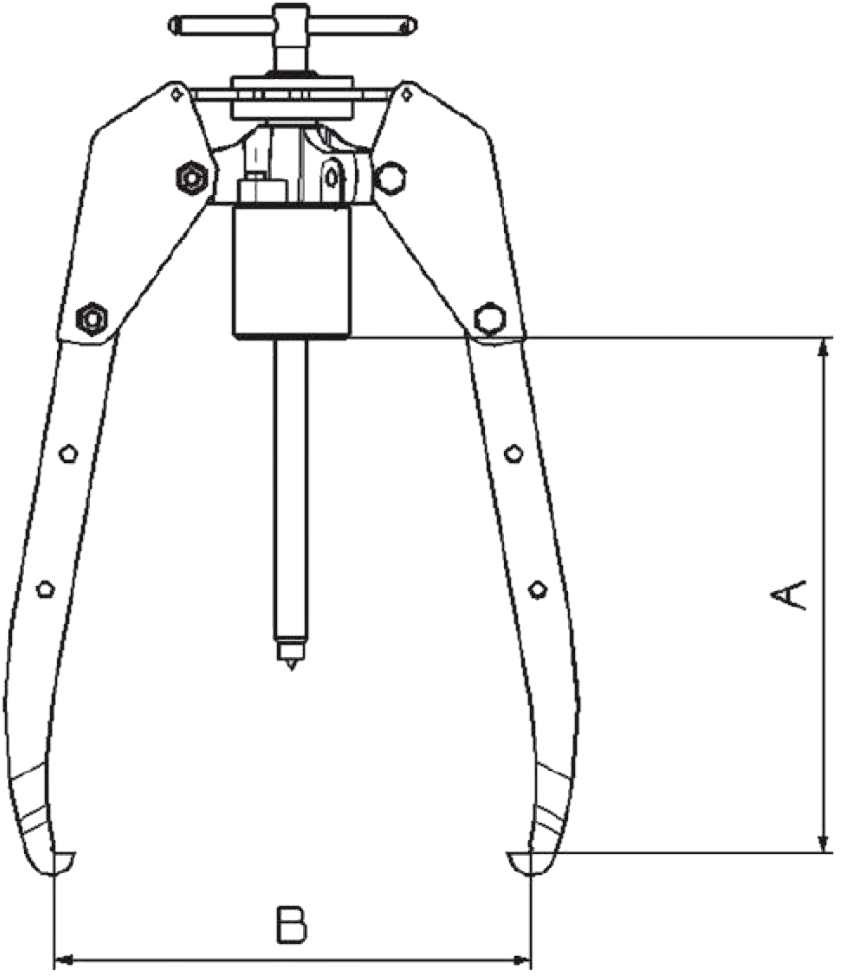

a b
mini maxi
10 EGA 10 296 50 350 14,5 UH 10 11
20 EGA 20 320 70 480 33 UH 20 16
30 EGA 30 407 90 580 56,5 UH 30 21
50 EGA 50 750 120 1080 134 UH 50 37

* See Hydraulic units for pullers
