Hydraulic rod pullers

Force 10 to 50 tons

Definition

Especially designed for quick and safe pulling operations.

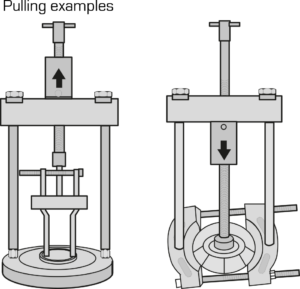

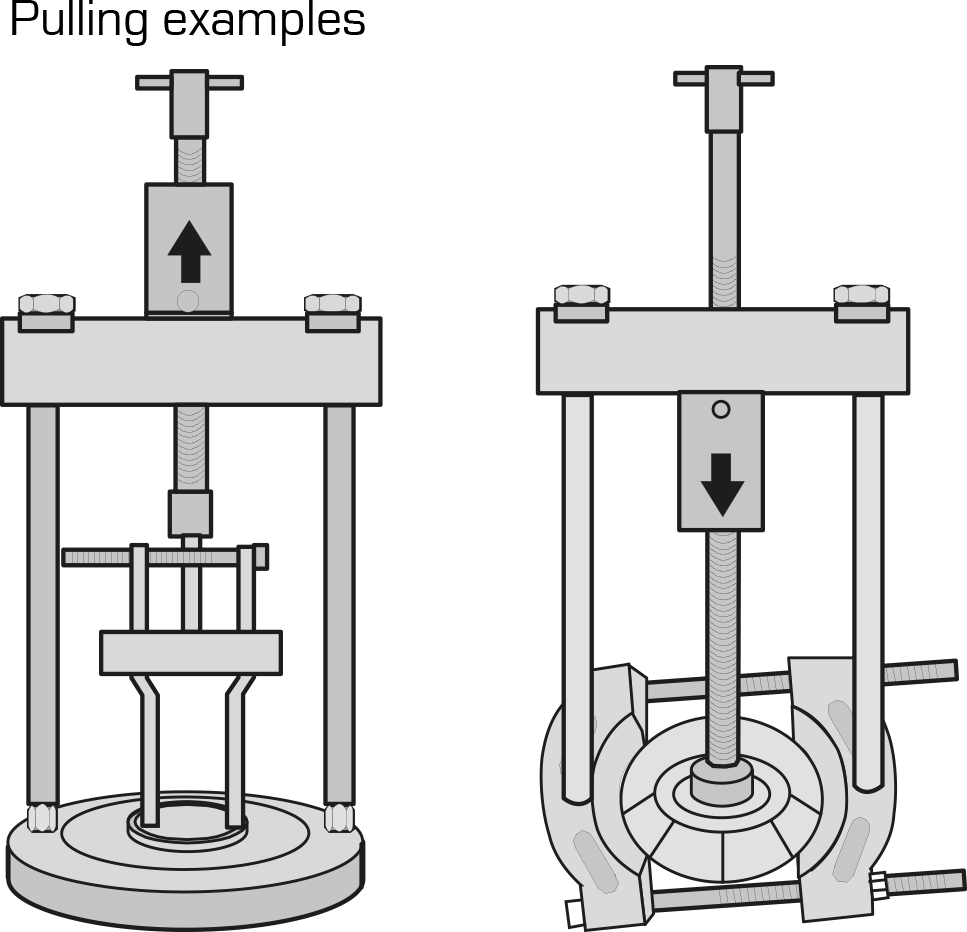

This rod puller is ideal for removing gears, bearing, …

Print this sheet
Hydraulic rod pullers : Hydraulic pullers - Quiri - 2
Hydraulic rod pullers : Hydraulic pullers - Quiri - 3

Mechanic units

Capacity



(Tons)

 Reference Dimensions (mm) d



(mm)

 Weight



(kg)
a b c Extension
rod
mini maxi
10 ET 10 275 115 260 5/8’’ – 18h 209 280 7,5
20 ET 20 253 140 345 5/8’’ – 18h 209 370 18,5
30 ET 30 262 180 440 1’’ – 14h 328 480 37
50 ET 50 449 220 580 1’’ 1/4 -12h 504 615 70,5

Product accessories

Bearing cup pullers

Bearing pullers

View similar products

Monobloc hydraulic grip pullers fitted with screw cylinder

Force 8 tons

Hydraulic units for pullers

2 and 3 jaws hydraulic pullers

10 à 50 tonnes

Complete hydraulic puller sets

Force 10 to 50 tons - Delivered in wooden box
