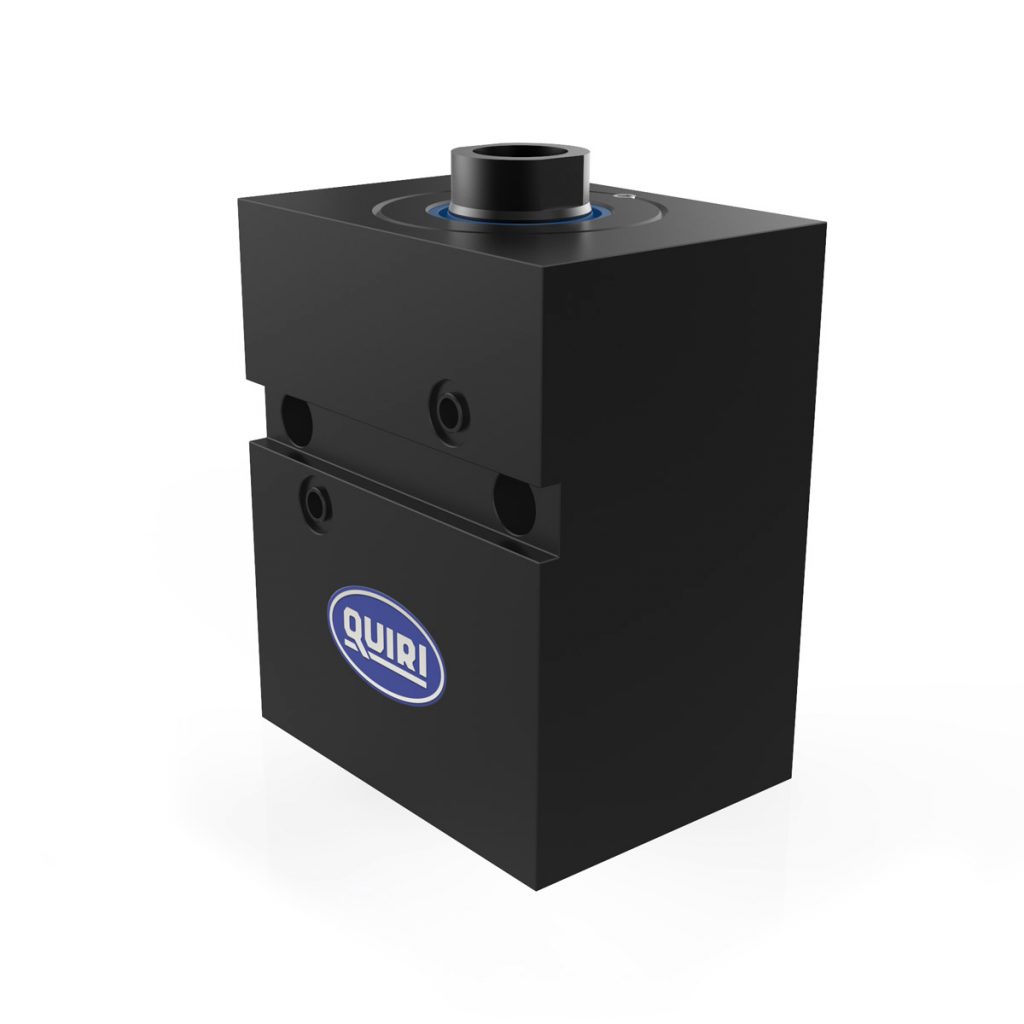

BDE hydraulic block cylinder

The BDE hydraulic block cylinder is a cubic hydraulic cylinder. The sealing was improved by an addition of guide tapes on piston and ring. All options are available and some are on standard models:

• Counterbore on fixation holes
• Closed groove on direct feeding models (F)
• Maximum temperature up to 250°C

This cylinder is designed with just 3 parts (body, piston-rod, guide ring) to give an important strength and reliability. With this design and the sealing improvement we can guarantee this product 3 years or 600kms. The range is available as follows :

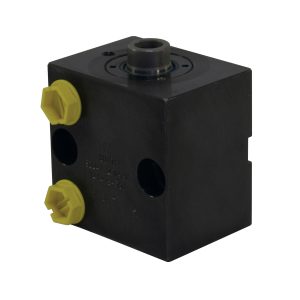

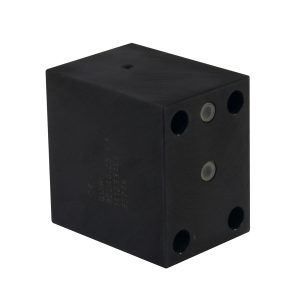

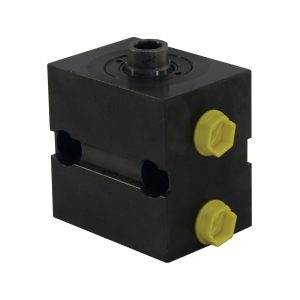

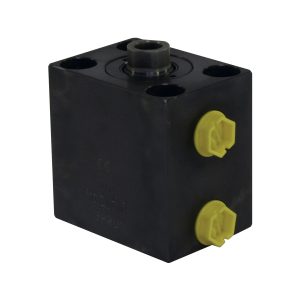

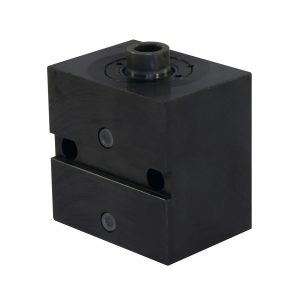

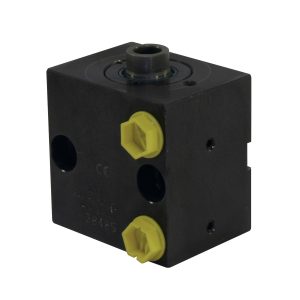

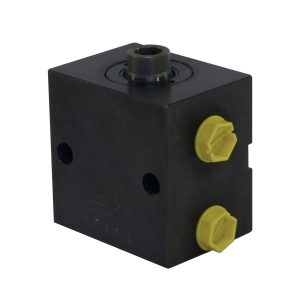

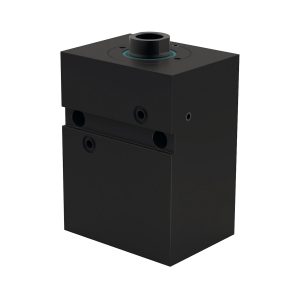

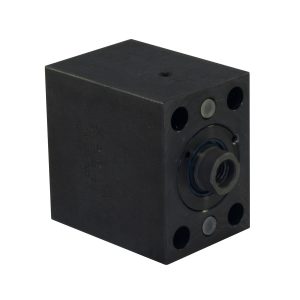

1. Available models [caption id="attachment_595" align="aligncenter" width="300"] BDE hydraulic block cylinder Type Standard[/caption] [caption id="attachment_602" align="aligncenter" width="300"] BDE hydraulic block cylinder Type P[/caption] [caption id="attachment_597" align="aligncenter" width="300"] BDE hydraulic block cylinder Type DG[/caption] [caption id="attachment_603" align="aligncenter" width="300"] BDE hydraulic block cylinder Type AG[/caption] [caption id="attachment_596" align="aligncenter" width="300"] BDE hydraulic block cylinder Type AD[/caption] [caption id="attachment_598" align="aligncenter" width="300"] BDE hydraulic block cylinder Type F1[/caption] [caption id="attachment_599" align="aligncenter" width="300"] BDE hydraulic block cylinder Type F2[/caption] [caption id="attachment_600" align="aligncenter" width="300"] BDE hydraulic block cylinder Type F3[/caption] [caption id="attachment_601" align="aligncenter" width="300"] BDE hydraulic block cylinder Type F4[/caption]
2. Available strokes
   • 5 by 5 up to 50mm
   • 10 by 10 up to the maximum stroke (ref catalog)
