Medium clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BMK

For swing clamp size: 11 - 12 - 21 - 31 - 41
rod end with 1:10 taper

Medium clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BMK : Swing clamps with helical rotation - Quiri

Definition

• with tap and bevel dimensions e, p, s, t

Characteristics

• turns over 360°
• treated for corrosion protection
• material: 2C45
• maximum service pressure: 175 bar

Option

Special arms made on request.

Nota

The clamping force and maximum flow rate reduce as the arm length increases (see tables on the guide and H clamp charts).

Make sure the rod is held while fastening the screw.
see figure 1 on the guide

Print this sheet

Medium clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BMK : Swing clamps with helical rotation - Quiri - 2

Type	Reference

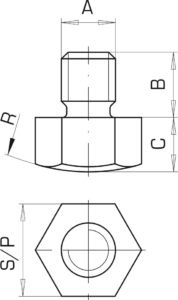

Type	Reference	A	B	C	R	S/P
			mm	mm	mm	mm
VB 15.8	811 261/000	M8	10	10	20	13
VB 40.12	811 202/000	M12	12	10	45	19
VB 65.16	811 203/000	M16	20	10	60	24
VB 100.20	811 204/000	M20	25	10	60	30

Medium clamping arm – rod with 1:10 taper – For swing clamp size: 11 – 12 – 21 – 31 – 41 BMK : Swing clamps with helical rotation - Quiri - 3

Tap	Bevel	Type	Reference
Tap	Bevel	Type	Reference	a	b	c	ød	e	f	g	h	k	l	øn	p	ør	s	t
				mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	°	°
WITH	WITH	BMK 11	901-2-018	55	30	32	17.46	20	40	M8	17	1	3	23	25	26	12.5	6
WITH	WITH	BMK 12	901-2-020	72	34	45	19.46	22	55	M8	19	1	5	25	33	28	12.5	6
WITH	WITH	BMK 21	901-2-025	85	40	50	24.46	21	65	M12	23	1	4	31	–	34	25	10
WITH	WITH	BMK 31	901-2-036	108	55	65	35.46	35	80.5	M16	30	1	5	41	47	45	15	12.5
WITH	WITH	BMK 41	901-2-042	125	70	70	40.93	43	90	M20	33	2	6	51	61	52	20	10
